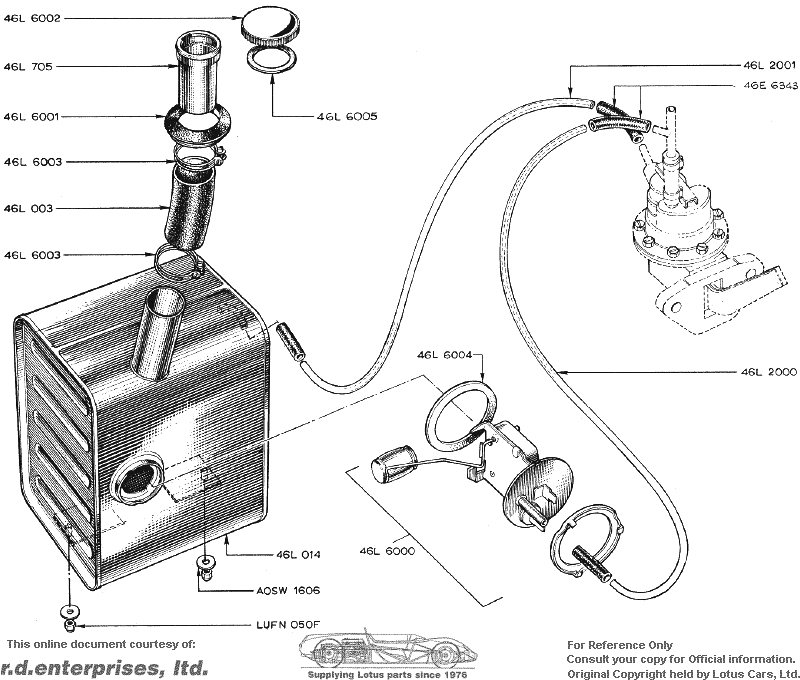

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46L6002 | 46L6002 | 1 | 1 | Fuel Filler Cap | |||||||||
| 46L705 | 46L705 | 1 | 1 | Filler Neck | |||||||||
| 46L6001 | 46L6001 | 1 | 1 | Gromet - Filler Neck | |||||||||
| 46L003 | 46L003 | 1 | 1 | Hose - Filler Neck to Tank | |||||||||
| 46L6003 | 46L6003 | 2 | 2 | Clip - Filler Neck Hose | |||||||||
| 46L014 | 46L014 | 1 | 1 | Fuel Tank | |||||||||
| A0SW1601 | A0SW1601 | 2 | 2 | Washer - Fuel Tank Bottom to Body | |||||||||
| LUFN050F | LUFN050F | 2 | 2 | Nut - Fuel Tank Bottom to Body | 5/16" x 24 TPI, 1/2" head | ||||||||
| 46L6004 | 46L6004 | 1 | 1 | Fuel Level Transmitter Gasket | |||||||||
| 46L6000 | 46L6000 | 1 | 1 | Fuel Level Transmitter | |||||||||
| 46L2001 | 46L2001 | 1 | 1 | Hose - Tank Supply Port to Pump Input | |||||||||
| 46E6343 | 46E6343 | 4 | 4 | Sleeve | |||||||||
| 46L2000 | 46L2000 | 1 | 1 | Hose - Pump Return to Fuel Level Transmitter | |||||||||
| 46L6005 | 46L6005 | Seal Ring - Fuel Filler Cap |
