LOTUS EUROPA S1 PARTS MANUAL

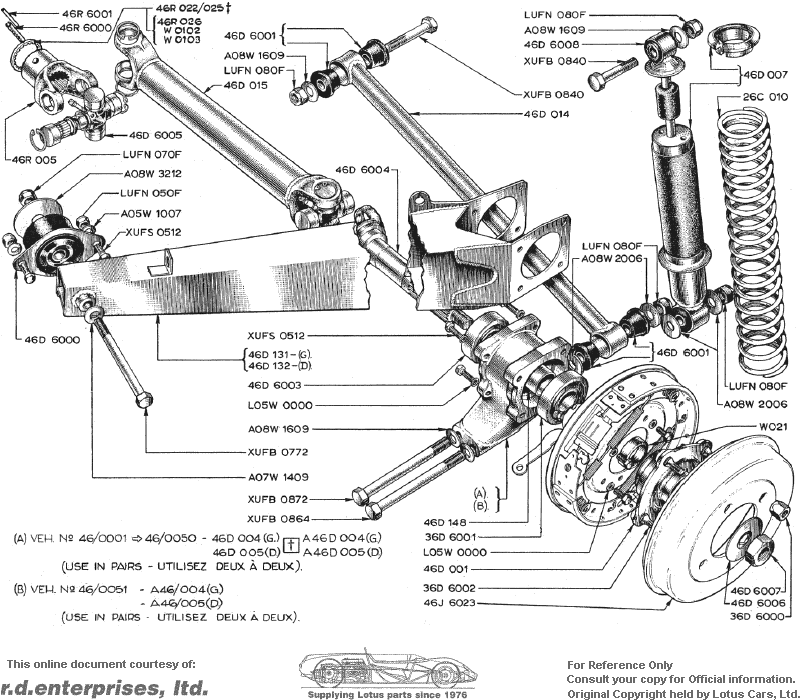

Section D1 -- Suspension -- Rear


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46R6001 46R60012 2                 Tension Pin - Inner - Drive Shaft to Final Drive
46R6000 46R60002 2                 Tension Pin - Outer - Dive Shaft to Gearbox
46R026 46R026                    Spacer Ring (3rd Oversize) (As Required)
W0102 W0102                    Shim 0.005 ins. (All - As Required)
W0103 W0103                    Shim 0.015 ins. (All - As Required)
46R005 46R0054 4                 Yoke - Inboard Drive Shaft
46D6005 46D60054 4                 Universal joint
LUFN070F LUFN070F2 2                 Nut - Nyloc or Stover - Resilient Mounting to Radius Arm 7/16" x 20 TPI, 11/16" head
A08W3212 A08W32122 2                 Washer - Resilient Mounting to Radius Arm
LUFN050F LUFN050F4 4                 Nut - Resilient Mounting to Chassis 5/16" x 24 TPI, 1/2" head
A05W1007 A05W10074 4                 Washer - Resilient Mounting to Chassis 1/16" thick, 5/8" OD and 9/32" ID
XUFS0512 XUFS05124 4                 Bolt - Resilient Mounting to Chassis 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
046D6000 046D60002 2                 Resilient Mounting (Metalastic)
XUFS0512 XUFS05128 8                 Bolt - Radius Arm to Wheel Bearing Housing 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
46D131-(G) 46D131-(G)1 1                 Radius Arm LH
46D132-(D) 46D132-(D)1 1                 Radius Arm RH
46D6003 46D60032 2                 Wheel Bearing - Rear Inner
L05W0000 L05W00008 8                 Washer - Radius Arm to Wheel Bearing Housing 7/64" thick split washer, 19/32" OD, 5/16" ID
A08W1609 A08W1609-24 4                 Washer - Wheel Bearing Housing to Lower Link 1/16" thick, 1" OD, 1/2" ID
XUFB0772 XUFB07722 2                 Bolt - Radius Arm to Resisient Mounting
A07W1409 A07W14092 2                 Washer - Radius Arm to Resisient Mounting
XUFB0872 XUFB08722 2                 Bolt - Wheel Bearing Housing to Lower Link Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4"
XUFB0864 XUFB08642 2                 Bolt - Wheel Bearing Housing to Damper Length 4", thread length 1 3/8", 1/2" x 20 TPI, head 3/4"
046D004(G) 046D004(G)1                   Rear Wheel Bearing Housing LH Up to Chassis No. 0050
046D005(D) 046D005(D)1                   Rear Wheel Bearing Housing RH Up to Chassis No. 0050
A046D004(G) A046D004(G)1 1                 Rear Wheel Bearing Housing LH From Chassis No. 0051
A046D005(D) A046D005(D)1 1                 Rear Wheel Bearing Housing RH From Chassis No. 0051
46D6001 46D60018 8                 Bush - Lower Link 29/32" long

A08W1609 A08W16092 2                 Washer - Lower Link to Lower Link bracket 1/16" thick, 1" OD, 1/2" ID
LUFN080F LUFN080F2 2                 Nut - Nyloc or Stover - Lower Link to Lower Link bracket 1/2" x 20 TPI, 3/4" head
46D015 46D0152 2                 Intermediate Drive Shaft
46D6004 46D60042 2                 Outboard Drive Shaft (Rear Stub Axle)
LUFN080F LUFN080F-12 2                 Nut - Nyloc or Stover - Damper to Cross Beam 1/2" x 20 TPI, 3/4" head
A08W1609 A08W1609-12 2                 Washer - Damper to Cross Beam 1/16" thick, 1" OD, 1/2" ID
XUFB0840 XUFB08402 2                 Bolt - Damper to Cross Beam 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI
XUFB0840 XUFB0840-12 2                 Bolt - Lower Link to Lower Link Mount 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI
46D014 46D0142 2                 Lower Link
46D007 46D0072 2                 Rear Damper
26C010 26C0102 2                 Road Spring - Rear
LUFN080F LUFN080F-22 2                 Nut - Nyloc or Stover - Wheel Bearing Housing to Damper 1/2" x 20 TPI, 3/4" head
LUFN080F LUFN080F-32 2                 Nut - Nyloc or Stover - Wheel Bearing Housing to Lower Link 1/2" x 20 TPI, 3/4" head
A08W2006 A08W20064 4                 Washer - Wheel Bearing Housing to Damper 1/16" thick, 1 1/2" OD, 1/2" ID
A08W2006 A08W2006-14 4                 Washer - Wheel Bearing Housing to Lower Link 1/16" thick, 1 1/2" OD, 1/2" ID
46D148 46D1482 2                 Spacer - Wheel Bearing to Wheel Bearing
36D6001 36D60012 2                 Wheel Bearing - Rear Outer
L05W0000 L05W00008 8                 Washer - Brake Backing Plate to Wheel Bearing Housing 7/64" thick split washer, 19/32" OD, 5/16" ID
46D001 46D0012 2                 Rear Hub
36D6002 36D60028 8                 Wheel Stud Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455"

46J6023 46J60232 2                 Brake Drum - Rear
W021 W0212 2                 Spacer - Hub to Wheel Bearing
46D6007 46D60072 2                 Hub Retaining Nut
46D6006 46D60062 2                 Lock Washer
36D6000 36D60004 4                 Wheel Nut Thread: 3/8-24
46R022 46R022                    Spacer Ring (0.405 ins. Undersize) (As Required)
46R023 46R023                    Spacer Ring (0.410 ins. Undersize) (As Required)
46R024 46R024                    Spacer Ring (1st Oversize) (As Required)
46R025 46R025                    Spacer Ring (2nd Oversize 0.420 ins) (As Required)
L05W0000 L05W00008 8 8 8 8 8 8 8     Washer - Split - Radius Arm to Wheel Bearing Housing 7/64" thick split washer, 19/32" OD, 5/16" ID
XUFS0512 XUFS05128 8 8 8 8 8 8 8     Bolt - Backing Plate to Wheel Bearing Housing 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
46D6008 46D60084 4                 Bush - Rear Damper
