 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

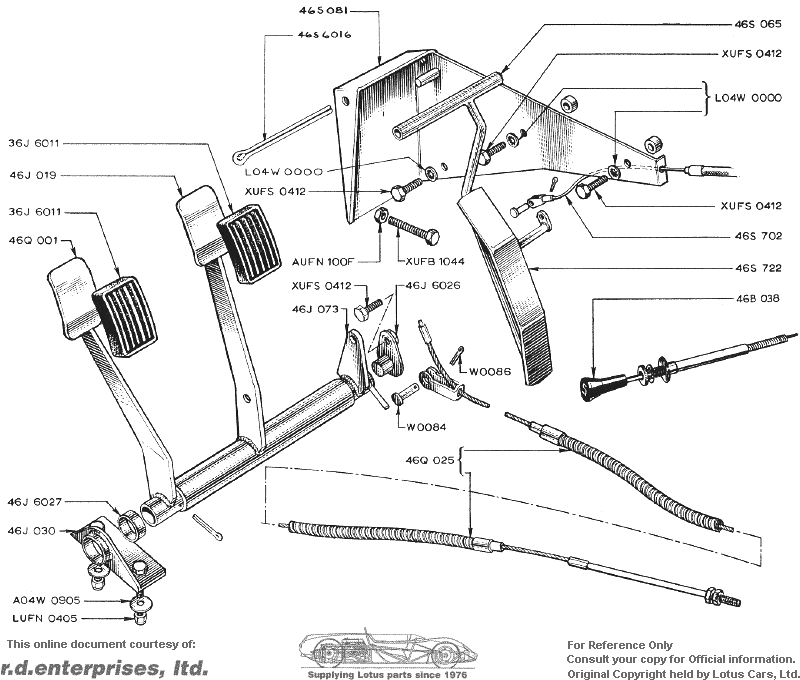

| 36J6011 | 36J6011 | 2 | 2 | Pedal Rubber | |||||||||
| 46J019 | 46J019 | 1 | 1 | Brake Pedal | |||||||||
| 46J6027 | 46J6027 | 1 | 1 | Bushing - Clutch Pedal Shaft | |||||||||
| 46J030 | 46J030 | 1 | 1 | Pedal Mounting Bracket | |||||||||
| A04W0905 | A04W0905 | 2 | 2 | Washer - Pedal Mounting Bracket | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| LUFN0405 | LUFN0405 | 2 | 2 | Nut - Pedal Mounting Bracket | |||||||||
| 46S081 | 46S081 | 1 | 1 | Mounting Bracket - Throttle pedal | |||||||||
| 46S6016 | 46S6016 | 1 | 1 | Pivot Pin | |||||||||
| L04W0000 | L04W0000 | 3 | 3 | Washer | |||||||||
| XUFS0412 | XUFS0412 | 3 | 3 | Bolt | |||||||||
| AUFN100F | AUFN100F | 1 | 1 | Nut | |||||||||
| XUFS0412 | XUFS0412 | 1 | 1 | Bolt | |||||||||
| 46J073 | 46J073 | 1 | 1 | Spikot Plate | |||||||||
| XUFB1044 | XUFB1044 | 1 | 1 | Bolt | |||||||||
| 46J6026 | 46J6026 | 1 | 1 | Support Bush - Brake Pedal | |||||||||
| W0086 | W0086 | 1 | 1 | Split Pin | |||||||||
| W0084 | W0084 | 1 | 1 | Pin - Clutch Cable Clevis | |||||||||
| 46Q025 | 46Q025 | 1 | 1 | Clutch Cable | |||||||||
| 46S065 | 46S065 | 1 | 1 | Throttle Pedal Pivot | |||||||||
| 46Q001 | 46Q001 | 1 | 1 | Clutch Pedal | |||||||||
| 46S702 | 46S702 | 1 | 1 | Throttle Cable | |||||||||
| 46S722 | 46S722 | 1 | 1 | Throttle Pedal | |||||||||
| 46B038 | 46B038 | 1 | 1 | Choke Cable |
