 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

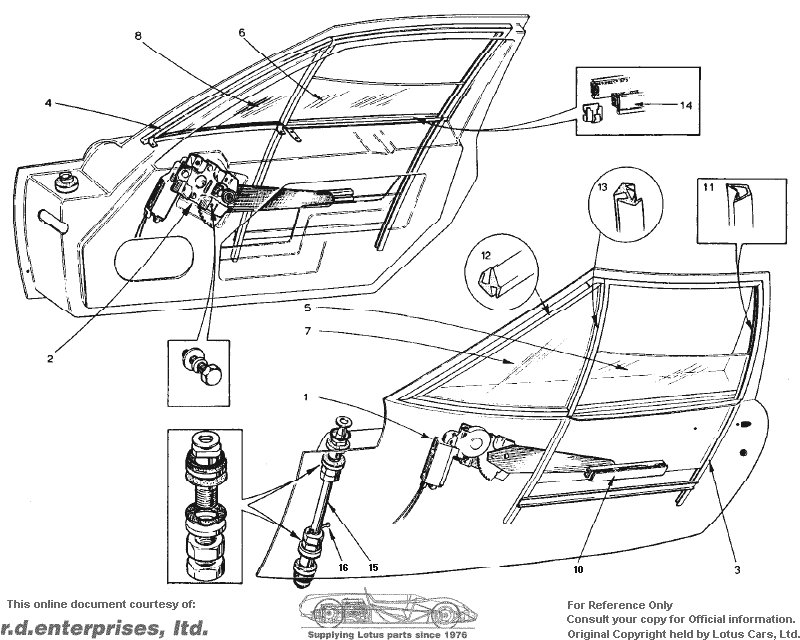

| 1 | 054B1495 | 1 | 1 | Window Lift Motor - LH | From Chassis No. 0645 | ||||||||
| 2 | 054B1496 | 1 | 1 | Window Lift Motor - RH | From Chassis No. 0645 | ||||||||
| XUFB 0418 | 8 | 8 | Bolt - Window Lift Motor to Door | From Chassis No. 0645 | |||||||||
| A04W1606 | 8 | 8 | Washer - Window Lift Motor to Door | From Chassis No. 0645 | |||||||||
| L04W0000 | 8 | 8 | Washer - Window Lift Motor to Door | From Chassis No. 0645 | |||||||||
| 046B6015 | 2 | 2 | Side Window Surround | Up to Chassis No. 0644 | |||||||||
| 046B0659 | 1 | Dividing Channel Side Window LH | From Chassis No. 0300 - including 0270 - 0271 | ||||||||||
| 046B0660 | 1 | Dividing Channel Side Window LH | From Chassis No. 0300 - including 0270 - 0271 | ||||||||||
| MUFS0408 | 4 | Screw - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 | ||||||||||
| YUFN040H | 4 | Nut - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 | ||||||||||
| A02W0603 | 4 | Washer - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 | ||||||||||
| 3 | 054B0791 | 1 | 1 | Window Frame - LH | From Chassis No. 0645 | ||||||||
| 054B0792 | 1 | 1 | Window Frame - RH | From Chassis No. 0645 | |||||||||
| 4 | 054B0789 ? | 1 | 1 | Quarter Light Frame LH | From Chassis No. 0645 | ||||||||
| 054B0790 | 1 | 1 | Quarter Light Frame rH | From Chassis No. 0645 | |||||||||
| 036B6033 | 14 | 14 | Rivet - Window Frames to Door | From Chassis No. 0645 | |||||||||
| PUCS0408 | 4 | 4 | Screw - Window Frames to Door | From Chassis No. 0645 | |||||||||
| A02W0603 | 4 | 4 | Washer - Window Frames to Door | From Chassis No. 0645 | |||||||||
| YUNC040F | 4 | 4 | Nut - Window Frames to Door | From Chassis No. 0645 | |||||||||
| 046B0667 | 1 | Side Window LH | Up to Chassis No. 0299 excluding 0270 - 0271 and 0272 | ||||||||||
| A046B0667 | 1 | Side Window LH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | ||||||||||
| 5 | 054B0667 | 1 | 1 | Side Window LH | From Chassis No. 0645 | ||||||||
| 054B0667A | Side Window LH Shaded Optional | ||||||||||||
| 046B0668 | 1 | Side Window RH | Up to Chassis No. 0299 excluding 0270 - 0271 and 0272 | ||||||||||
| A046B0668 | 1 | Side Window RH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | ||||||||||
| 6 | 054B0668 | 1 | 1 | Side Window RH | From Chassis No. 0645 | ||||||||
| 054B0668A | Side Window RH Shaded Optional | ||||||||||||
| 046B0669 | 1 | Quarter Light Glass | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | ||||||||||
| 054B0669 | 1 | 1 | Quarter Light Glass replaced by 054B0669A | From Chassis No. 0645 to 1479 | |||||||||
| 7 | 054B0669A | 1 | 1 | Quarter Light Glass LH | From Chassis No. 1480 | ||||||||
| B054B0669 | Quarter Light Glass LH Shaded optional | ||||||||||||
| 046B0670 | 1 | Quarter Light Glass | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | ||||||||||
| 054B0670 | Quarter Light Glass replaced by 054B0670A | From Chassis No. 0645 to 1479 | |||||||||||
| 8 | 054B0670A | 1 | 1 | Quarter Light Glass RH | From Chassis No. 1480 | ||||||||
| B054B0670 | Quarter Light Glass RH Shaded Optional | ||||||||||||
| 10 | 054B0091 | 2 | 2 | Channel - Window Lift | |||||||||
| 054B6108 | 2 | 2 | Evermeal Strip - Window Lift Channel | ||||||||||
| 046B6117 | 1 | Side Window Channel LH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | ||||||||||
| 046B6118 | 1 | Side Window Channel RH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | ||||||||||
| 11 | 054B6023 | 1 | 1 | Side Window Channel | From Chassis No. 1066 | ||||||||
| 12 | A054B1899 | 1 | 1 | Seal Channel - Quarter Light - Front | From Chassis No. 1066 | ||||||||
| 046B6119 | 2 | Seal Channel - Quarter Light | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | ||||||||||
| 13 | A054B1898 | 1 | 1 | Seal Channel - Quarter Light to Dividing Channel | From Chassis No. 1066 | ||||||||
| 14 | 050B6011 ? | 4 | 4 | Weather Strip - Side Window | From Chassis No. 1066 | ||||||||
| 054B6106 | 16 | 16 | Clip - Weatherstrip to Frame | From Chassis No. 1066 | |||||||||
| 15 | 046B0073 | 2 | 2 | 2 | 2 | Pivot Pin - Door Hinge | |||||||
| A054B2000 | 4 | 4 | 4 | 4 | Brush - Door Hinge | ||||||||
| 046B6024 | 4 | 4 | 4 | 4 | O Ring - Door Hinge | ||||||||
| AUFN120H | 8 | 8 | 8 | 8 | Nut - Door Hinge | ||||||||
| 128D | 8 | 8 | 8 | 8 | Washer - Door Hinge | ||||||||
| 128CA | Washer - Door Hinge (All - As Required) | ||||||||||||
| W015 | 12 | 12 | 12 | 12 | Abrasive Washer - Door Hinge | ||||||||
| 16 | 054B6105 | 2 | 2 | 2 | 2 | Split Pin - Door Hinge | |||||||
| 46B1370 ? | 4 | Catch - Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| W0135 | 4 | Screw - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| 046B6114 | 4 | Domed Nut - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| A03@0605 | 4 | Washer - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| 046B6115 | 8 | Washer - Fibre - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| 036B6007 | 4 | Snap Sac - Trim Panel Mounting | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| 046B1361 | 4 | Carrier Bracket - Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| 050B6003 ? | 4 | Rivet - Carrier Bracket to Body | From Chassis No. 0300 including 0270 - 0271 and 0272 | ||||||||||
| A03W0605 | 4 | Washer - Carrier Bracket to Body | From Chassis No. 0300 including 0270 - 0271 and 0272 |
