 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

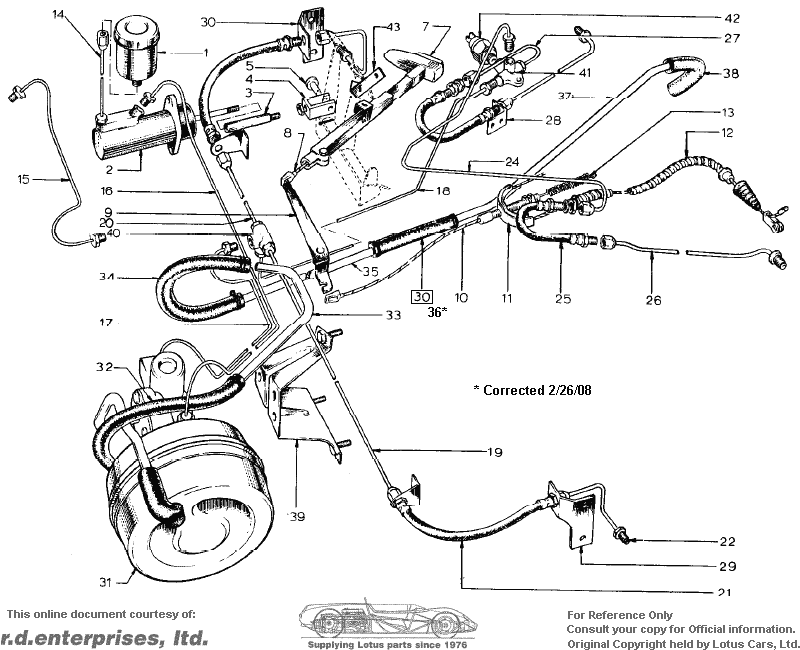

| 1 | 046J6019 | 1 | 1 | 1 | Reservoir | ||||||||
| 046J6041 | 1 | 1 | 1 | Cap - Reservoir | |||||||||
| 046J0078 | 1 | 1 | 1 | Mounting Bracket - Reservoir | |||||||||
| 2 | 046J6018 | 1 | 1 | 1 | Master Cylinder | Sleeving | |||||||
| 046J6015 | 1 | 1 | 1 | Repair Kit - Master Cylinder | |||||||||
| 046J0075 | 1 | 1 | 1 | Adaptor | |||||||||
| A046J0075 | Replaced by 054J0075 | ||||||||||||
| 3 | A054J0075 | 1 | Adaptor | ||||||||||
| 4 | 046J0076 | 1 | 1 | 1 | 1 | Clevis | |||||||
| 5 | W0084 | 1 | 1 | 1 | 1 | Clevis Pin - Clevis to Pedal | |||||||
| 415 | 1 | 1 | 1 | 1 | Split Pin - Clevis to Pedal | ||||||||
| 046J0727 | 1 | 1 | + | Handbrake Lever Assembly | |||||||||
| 7 | A026J0704 | 1 | 1 | + | Handbrake Lever Assembly | ||||||||
| A026J0705 | 1 | 1 | + | Handbrake Lever Assembly | |||||||||
| 8 | 046J0067 | 1 | 1 | 1 | 1 | Handbrake Cable - Lever to Multiplier | |||||||
| 9 | 046J0058 | 1 | 1 | 1 | 1 | + | Multiplier | ||||||
| 046J0057 | 1 | 1 | 1 | 1 | + | Multiplier | |||||||
| 046J0074 | 1 | 1 | 1 | 1 | Pivot Bolt - Multiplier to Chassis | ||||||||
| W0078 | 1 | 1 | 1 | 1 | Washer - Multiplier to Chassis | ||||||||
| 10 | 046J0068 | 1 | 1 | 1 | 1 | Handbrake Cable - Intermediate | |||||||
| 11 | 046J6028 | 1 | 1 | 1 | 1 | Compensator Assembly | |||||||
| 12 | 046J0069 | 1 | 1 | 1 | 1 | Handbrake Cable - rear | |||||||
| 13 | 046J0016 | 1 | 1 | 1 | 1 | Return Spring | |||||||
| 14 | 046J6032 | 1 | 1 | 1 | Bundy Pipe - Reservoir to Master Cylinder | ||||||||
| 15 | 046J6058 | 1 | + | Bundy Pipe - Master Cylinder to Union | |||||||||
| 054J6009 | 1 | + | Bundy Pipe - Master Cylinder to Union | ||||||||||
| 16 | 046J6048 | 1 | 1 | + | Bundy Pipe - Master Cylinder to Servo | ||||||||
| 046J6047 | 1 | 1 | + | Bundy Pipe - Master Cylinder to Servo | |||||||||
| 17 | 054J6026 | 1 | Bundy Pipe - Servo to Union | ||||||||||
| 18 | 046J6037 | 1 | 1 | Bundy Pipe - Front Union to Rear Union | |||||||||
| 054J6006 | 1 | 1 | Bundy Pipe - Front Union to Rear Union | ||||||||||
| 19 | 046J6035 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose LH | ||||||||
| 20 | 046J6036 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose RH | ||||||||
| 21 | 046J6016 | 2 | 2 | 2 | 2 | Flexible Hose - Front | |||||||
| AUFN060H | 2 | 2 | 2 | 2 | Nut - Flexible Hose Retaining | ||||||||
| L06W0000 | 2 | 2 | 2 | 2 | Washer - Flexible Hose Retaining | ||||||||
| 22 | 046J6044 | 2 | 2 | 2 | 2 | Bundy Pipe - Flexible Hose to Caliper | |||||||
| 24 | 046J6043 | 1 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose Rear - LH | |||||||
| 25 | 046J6020 | 2 | 2 | 2 | 2 | Flexible Hose - Rear | |||||||
| AUFN060H | 2 | 2 | 2 | 2 | Nut - Flexible Hose Retaining | ||||||||
| L06W0000 | 2 | 2 | 2 | 2 | Washer - Flexible Hose Retaining | ||||||||
| 26 | 046J6042 | 2 | 2 | 2 | 2 | Bundy Pipe - Flexible Hose to Rear Brake | |||||||
| 27 | 046J6045 | 1 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose Rear - RH | |||||||
| 28 | 046J2002 | 2 | 2 | 2 | 2 | Bracket | |||||||
| 29 | 046J2000 | 1 | 1 | 1 | 1 | Bracket - LH | |||||||
| 30 | 046J2001 | 1 | 1 | 1 | 1 | Bracket - RH | |||||||
| 046J6052 | 1 | Servo Unit - Service Option | |||||||||||
| 31 | 054J6023 | 1 | Servo Unit | ||||||||||
| 046J6055 | 1 | 1 | Air Filter Element - Servo | ||||||||||
| 32 | 046J6053 | 1 | 1 | Vacuum Hose | |||||||||
| 33 | 046J6051 | 1 | 1 | Pipe - Vacuum | |||||||||
| 34 | 046J6057 | 1 | 1 | Vacuum Hose | |||||||||
| 35 | 046J6050 | 1 | 1 | Pipe - Vacuum | |||||||||
| 36 | 046J6027 | 1 | Vacuum Hose | ||||||||||
| 37 | 046J6051 | 1 | 1 | Pipe - Vacuum | |||||||||
| 38 | 054J6025 | 1 | Vacuum Hose | ||||||||||
| 046J0099 | |||||||||||||
| 39 | 036J6054 | 1 | 1 | Mounting Bracket - Servo | Up to Chassis No. ? | ||||||||
| 39 | A054J0164 | 1 | Backing Plate | From Chassis No. ? | |||||||||
| 40 | 046J6017 | 1 | 1 | Union - Front 4 way | Attaches with 7/16 head, 1/4" x 28 TPI, 1" long bolt, | ||||||||
| 41 | 046J6017 | 1 | 1 | Union - Rear 4 way | Attaches with 7/16 head, 1/4" x 28 TPI, 1" long bolt, | ||||||||
| 42 | 046J6025 | 1 | 1 | 1 | 1 | Stop Lamp Switch | |||||||
| 036J6059 | 1 | 1 | 1 | 1 | Seal - Stop Lamp Switch | ||||||||
| 43 | 054J0104 | 1 | 1 | 1 | 1 | + | Support Bracket - Handbrake | ||||||
| XUFS0508 | 2 | 2 | 2 | 2 | Screw - Support Bracket to Body | ||||||||
| A05W1006 | 2 | 2 | 2 | 2 | Washer - Support Bracket to Body | ||||||||
| YUFN050F | 2 | 2 | 2 | 2 | Nut - Support Bracket to Body | ||||||||
| XUFS0508 | 1 | 1 | 1 | 1 | Screw - Handbrake Lever to Support Bracket | ||||||||
| YUFN | 1 | 1 | 1 | 1 | Nut - Handbrake Lever to Support Bracket |
