 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

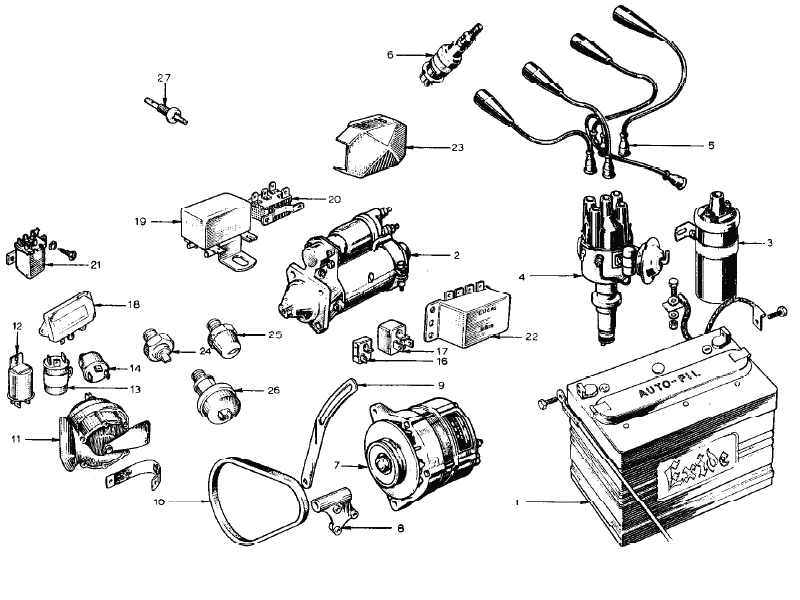

| 046M0719 | 1 | + | Main Loom | ||||||||||
| A046M0704 | 1 | + | Main Loom | ||||||||||
| 054M0704 | 1 | Main Loom | Up to Chassis No. ? | ||||||||||
| 054M0704A | 1 | Main Loom | From Chassis No. ? | ||||||||||
| A054M0704A | 1 | Main Loom (Sweden) | From Feb. 1970 | ||||||||||
| 036M6368 | 8 | 8 | Cable Strap | ||||||||||
| 054M0786 | 1 | Loom - Brake Fail - Engine Bay | |||||||||||
| 054M0785 | 1 | Loom - Brake Fail - Facia | |||||||||||
| 054M0763 | 1 | Loom - Brake Fail and Hazard Warning | From Chassis No 1066 to ? | ||||||||||
| 054M0785 | 1 | Loom - Brake Fail - Dual Braking System | |||||||||||
| 054M0786 | 1 | Loom - Brake Fail - Dual Braking System | |||||||||||
| 054M0759 | 1 | 1 | Loom - Window Lift | ||||||||||
| 054M0789 | 1 | 1 | Loom - Extension - Window Lift | Up to Chassis No. ? | |||||||||
| 046M0725 | 1 | 1 | Jumper Loom - Steering Column with Lock | ||||||||||
| 054M0788 | 1 | 1 | Extension Loom - Window Lift | From Chassis No. ? | |||||||||
| 050M0106 | 1 | 1 | 1 | 1 | Earth Lead | ||||||||
| 1 | 036M6002 | 1 | 1 | 1 | 1 | Battery (dry charged) | |||||||
| 046M0046 | 1 | 1 | 1 | 1 | Cable - Battery to Starter | ||||||||
| 026M0045 | 14 | 14 | 14 | 14 | Cable - Battery to Earth | ||||||||
| A026M0045 | 1 | 1 | 1 | 1 | Cable - Battery to Earth | ||||||||
| 046M0039 | 1 | 1 | 1 | 1 | Ground Strap - Engine to Chassis | ||||||||
| 2 | 046M6026 | 1 | 1 | Starter Motor | |||||||||
| 054M6007 | 1 | 1 | Starter Motor | ||||||||||
| A054M6086 | 1 | Starter Motor | |||||||||||
| 046M6051 | 1 | 1 | Solenoid | ||||||||||
| 054M6008 | 1 | 1 | Solenoid | ||||||||||
| 046M6054 | 1 | 1 | Brush Set | ||||||||||
| 054M6032 | 1 | 1 | Brush Set | ||||||||||
| 046M6094 | 1 | 1 | 1 | 1 | Ignition Coil | ||||||||
| 3 | A046M6094 | 1 | 1 | 1 | 1 | Ignition Coil | |||||||
| 4 | 046M6055 | 1 | 1 | 1 | Distributor (697-04) | ||||||||
| A046M6087 | 1 | Distributor (821-30) | |||||||||||
| 046M6056 | 1 | 1 | 1 | 1 | Distributor Cap | ||||||||
| 046M6064 | 1 | 1 | 1 | 1 | Brush - Distributor Cap | ||||||||
| 046M6062 | 1 | 1 | 1 | 1 | Rotor Arm - Distributor | ||||||||
| 046M6086 | 1 | 1 | 1 | 1 | Contact Plate Assembly | ||||||||
| 046M6063 | 1 | 1 | 1 | 1 | Contact Breaker Set (points) | ||||||||
| 046M6061 | 1 | 1 | 1 | 1 | Washer - Contact Breaker Retaining | ||||||||
| 046M6060 | 1 | 1 | 1 | 1 | Clip - Contact Breaker Retaining | ||||||||
| A046M6068 | 1 | 1 | 1 | 1 | Adjusting Screw | ||||||||
| 046M6088 | 1 | 1 | 1 | 1 | Vacuum Advance Control | ||||||||
| 046M6059 | 1 | 1 | 1 | 1 | Condensor - Distributor | ||||||||
| 5 | A046M6116 | 1 | 1 | 1 | 1 | Cable Set (Spark Plug Wires) | |||||||
| 046M6117 | 1 | 1 | 1 | 1 | Cable - No. 1 Cylinder (Spark Plug Wire) | ||||||||
| A046M6117 | 1 | 1 | 1 | 1 | Cable - No. 2 Cylinder (Spark Plug Wire) | ||||||||
| 046M6118 | 1 | 1 | 1 | 1 | Cable - No. 3 Cylinder (Spark Plug Wire) | ||||||||
| 046M6119 | 1 | 1 | 1 | 1 | Cable - No. 4 Cylinder (Spark Plug Wire) | ||||||||
| 046M6120 | 1 | 1 | 1 | 1 | Distributor Cable to Coil | ||||||||
| 6 | 046M6096 | 4 | 4 | 4 | 4 | Spark Plug or 046M6097 | |||||||
| 046M6097 | 4 | 4 | 4 | 4 | Spark Plug or 046M6096 | ||||||||
| 046M6003 | Replaced by 046M6003 (697-04) with 1 of 046E6489 - 1 of A046M6099 - 1 of A046M6106 | Up to Engine No - 0389 | |||||||||||
| 7 | A046M6003 | 1 | 1 | 1 | 1 | Alternator | |||||||
| 8 | 046M6099 | 1 | 1 | 1 | 1 | Mounting Bracket - Alternator (697-04) Replaced by A046M6099 with 1 of A046M6106 | Up to Engine No. 0389 | ||||||
| A046M6099 | 1 | 1 | 1 | 1 | Mounting Bracket - Alternator | 697-04 From Engine No. 0390 - 821-30 From Engine No. 0001 | |||||||
| 046M6106 | 1 | 1 | 1 | 1 | Bolt - Alternator Mounting Bracket | Up to Engine No. 0389 | |||||||
| A046M6106 | 1 | 1 | 1 | 1 | Bolt - Alternator Mounting Bracket | 697-04 From Engine No. 0390 - 821-30 From Engine No. 0001 | |||||||
| 046M6108 | 2 | 2 | 2 | 2 | Bolt - Alternator Mounting Bracket (697-04) | Up to Engine No. 0389 | |||||||
| A046M6108 | 2 | 2 | 2 | 2 | Bolt - Alternator Mounting Bracket | 697-04 From Engine No. 0390 - 821-30 From Engine No. 0001 | |||||||
| A046W6074 | 3 | 3 | 3 | 3 | Washer - Alternator Mounting Bracket Bolts | ||||||||
| 046M6104 | 1 | 1 | 1 | 1 | Bolt - Alternator to Mounting Bracket | ||||||||
| 046M6101 | 1 | 1 | 1 | 1 | Spacer-Washer - Alternator to Mounting Bracket | ||||||||
| A046W6071 | 1 | 1 | 1 | 1 | Washer - Alternator to Mounting Bracket | ||||||||
| A046W6072 | 1 | 1 | 1 | 1 | Lock Washer - Alternator to Mounting Bracket | ||||||||
| 046M6107 | 1 | 1 | 1 | 1 | Nut Washer - Alternator to Mounting Bracket | ||||||||
| 9 | 046M6103 | 1 | 1 | 1 | 1 | Link - Alternator Drive Belt Adjustment | |||||||
| A046W6076 | 1 | 1 | 1 | 1 | Bolt (697-04) - Alternator to Adjusting Link | ||||||||
| A046W6077 | 1 | 1 | 1 | 1 | Bolt (821-30) - Alternator to Adjusting Link | ||||||||
| A046W6078 | 1 | 1 | 1 | 1 | Washer - Alternator to Adjusting Link | ||||||||
| A046W6016 | 1 | 1 | 1 | 1 | Lock Washer - Alternator to Adjusting Link | ||||||||
| A046W6079 | 1 | 1 | 1 | 1 | Nut - Alternator to Adjusting Link | ||||||||
| A046W6075 | 1 | 1 | 1 | 1 | Bolt - 8 x 30 mm. - Adjusting Link to Engine | ||||||||
| A046W6018 | 1 | 1 | 1 | 1 | Spring Washer - Adjusting Link to Engine | ||||||||
| 10 | 046M6109 | 1 | 1 | 1 | 1 | Drive Belt - Water Pump to Alternator | |||||||
| 11 | 036M7079 | 1 | 1 | 1 | 1 | Horn - Standard | |||||||
| XUFS0406 | 2 | 2 | 2 | 2 | Bolt - Horn Mounting | ||||||||
| XUFN040F | 2 | 2 | 2 | 2 | Nut - Horn Mounting | ||||||||
| A04W1606 | 2 | 2 | 2 | 2 | Washer - Horn Mounting | ||||||||
| 050M6056 | 1 | 1 | 1 | 1 | Air Horn Set - Optional | ||||||||
| 050B1526 | 1 | 1 | 1 | 1 | Mounting Bracket - Air Horns | ||||||||
| XUFS0412 | 4 | 4 | 4 | 4 | Screw - Compressor Mounting | ||||||||
| YUFN040F | 4 | 4 | 4 | 4 | Nut - Compressor Mounting | ||||||||
| A04W1606 | 2 | 2 | 2 | 2 | Washer - Compressor Mounting | ||||||||
| PSTS0610 | 2 | 2 | 2 | 2 | Screw - Air Horn Relay Mounting | ||||||||
| 036B6001 | 2 | 2 | 2 | 2 | Nut - Air Horn Relay Mounting | ||||||||
| 12 | 046M6168 | 1 | 1 | Flasher unit - Indicators | Up to Chassis No. 0541 | ||||||||
| 13 | 036M6270 | 1 | Flasher Unit - Hazard Warning | From Chassis No. ? | |||||||||
| 036M6270 | 1 | Flasher Unit - Hazard Warning | From Chassis No. ? To ? | ||||||||||
| 14 | 036M6024 | 1 | Flasher unit - Indicators | From Chassis No. ? | |||||||||
| 036M6024 | 1 | Flasher unit - Indicators | From Chassis No. ? To ? | ||||||||||
| 16 | 036M6300 | 1 | Flasher unit - Indicators | From Chassis No. 7001030001R | |||||||||
| 17 | 036M6334 | 1 | Flasher Unit - Hazard Warning | From Chassis No. 7001030001R | |||||||||
| 18 | 046M6000 | 1 | 1 | Voltage Regulator | |||||||||
| 046M6209 | 1 | 1 | Voltage Regulator (Replaced by A054M6083) | ||||||||||
| 19 | A054M6083 | 1 | 1 | Voltage Regulator | Up to Chassis No. ? | ||||||||
| A054M6094 | 1 | 1 | Voltage Regulator | From Chassis No. ? | |||||||||
| 20 | 050M6063 | 1 | 1 | Alternator Relay - Switches Alternator Field | |||||||||
| PSTS0806 | 4 | 4 | Screw - Regulator/Relay Mounting | ||||||||||
| 046B6025 | 4 | 4 | Nut (replaced by 036B6001) - Regulator/Relay Mounting | ||||||||||
| 036B6001 | 4 | 4 | Nut - Regulator/Relay Mounting | ||||||||||
| 21 | 046M6002 | 1 | 1 | 1 | 1 | Radiator Fan Motor Relay | |||||||
| 22 | A036M6326 | 1 | Relay - Tail Lamp | From Chassis No. 7001030001R | |||||||||
| A036M0140 | 1 | Earth Cable | From Chassis No. 7001030001R | ||||||||||
| 23 | 046M6159 | 1 | 1 | 1 | 1 | Fuse Box | |||||||
| 036M6109 | Fuse (As Required) | ||||||||||||
| PSTS1008 | 1 | 1 | 1 | 1 | Screw - Fuse Box Mounting | ||||||||
| 451B | 1 | 1 | 1 | 1 | Nut - Fuse Box Mounting | ||||||||
| 046E6347 | 1 | 1 | 1 | 1 | Water Temperature Transmitter (replaced by 046E6379) | ||||||||
| 24 | 046E6379 | 1 | 1 | 1 | 1 | Water Temperature Transmitter | |||||||
| 25 | 046M6095 | 1 | 1 | 1 | Oil Pressure Warning Lamp Switch | ||||||||
| A046M6095 | 1 | Oil Pressure Warning Lamp Switch | |||||||||||
| 046M6093 | 1 | 1 | 1 | 1 | Oil Pressure Warning Lamp Switch Seal Ring | ||||||||
| 26 | 046E6378 | 1 | 1 | 1 | 1 | Oil Pressure Transmitter | |||||||
| 046M6196 | 2 | Courtesy Lamp Switch - (replaced by 036M6266) | |||||||||||
| 27 | 046M6266 | 2 | Courtesy Lamp Switch | ||||||||||
| 050M6066 | 2 | 2 | Courtesy Lamp Switch | ||||||||||
| 026M0059 | 2 | 2 | 2 | 2 | Courtesy lamp Gasket | ||||||||
| 046M6031 | 1 | Cigar Lighter | |||||||||||
| 046M6074 | 1 | Cigar Lighter Element |
