 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

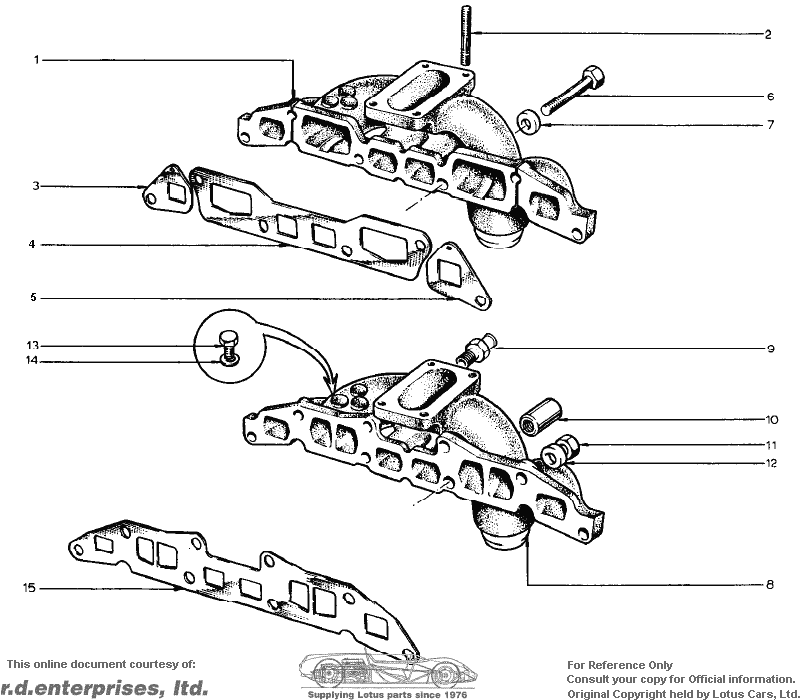

| 1 | 046E6139 | 1 | 1 | Manifold (697-04) | Up to Eng. No. 0501 | ||||||||
| 046E6399 | 1 | 1 | Manifold (697-04) replaced by 054E6014 w/2 of A046E6497 Stud and 2 of 054E6010 Nut | From Eng. No. 0502 | |||||||||
| 054E6014 | 1 | Manifold (697-04) | From Eng. No. ? | ||||||||||
| 2 | 046E6312 | 4 | 4 | 4 | Carburetter to Manifold Stud (697-04) | ||||||||
| A046W6022 | 4 | Carburetter to Manifold Stud - 8 x 60 (821-30) | |||||||||||
| 3 | 046E6140 | 1 | 1 | 1 | Front Manifold Gasket (697-04) | ||||||||
| 4 | 046E6141 | 1 | 1 | 1 | Centre Manifold Gasket (697-04) | ||||||||
| 5 | 046E6148 | 1 | 1 | 1 | Rear Manifold Gasket (697-04) | ||||||||
| 6 | 046E6145 | 2 | 2 | 2 | Manifold to Cylinder Head Bolt (697-04) | Up to Eng. No. ? | |||||||
| 7 | 046E6144 | 6 | 6 | 6 | Manifold to Cylinder Head Washer (697-04) | From Eng. No. ? | |||||||
| 046E6144 | 4 | Manifold to Cylinder Head Washer (697-04) | From Eng. No. ? | ||||||||||
| 8 | 054E6013 | 1 | Manifold (821-30) | ||||||||||
| 9 | 046E6255 | 1 | 1 | 1 | 1 | Vacuum Hose Connector | |||||||
| 10 | 054E6010 | 2 | 2 | 2 | Nut (687-04) | From Eng. No. ? | |||||||
| 054E6010 | 2 | Nut (821-30) | From Eng. No. 0001 | ||||||||||
| 11 | 046E6146 | 6 | Nut (821-30) | From Eng. No. 0001 | |||||||||
| 046E146A | 4 | Nut (697-04) | From Eng. No. ? | ||||||||||
| 12 | 046E6144 | 4 | Washer | ||||||||||
| 13 | A046E6019 | 1 | 1 | 1 | 1 | 8 x 14 Bolt | |||||||
| 14 | 046E6138 | 1 | 1 | 1 | 1 | Washer | |||||||
| 15 | 054E6005 | 1 | Gasket |
