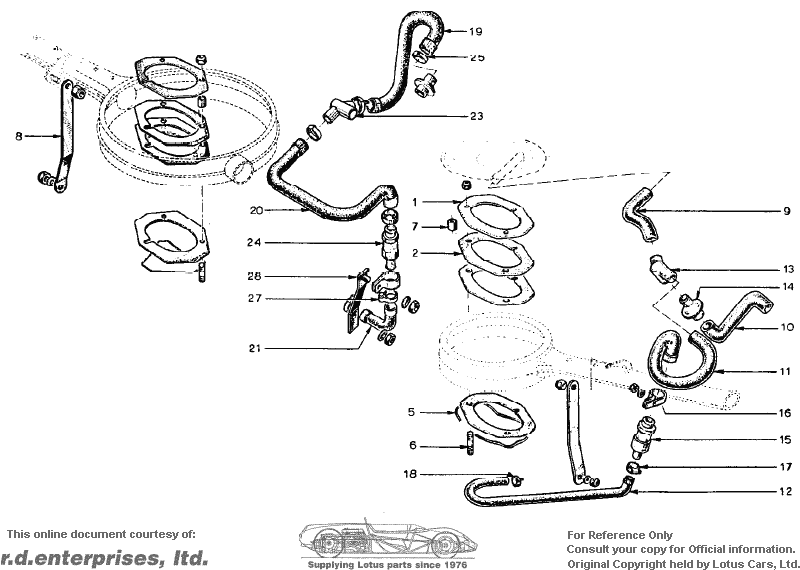

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046S6001 | 1 | Plate | Up to Eng. No. 0044 | |||||||||
| A046E6501 | 1 | 1 | 1 | 1 | Plate | From Eng. No. 0045 | |||||||
| 2 | 046S6000 | 4 | Gasket | Up to Eng. No. 0044 | |||||||||
| 046S6012 | 3 | 3 | 3 | 3 | Gasket | From Eng. No. 0045 | |||||||
| 5 | 046E6023 | 1 | 1 | 1 | 1 | Clip | |||||||
| 6 | A046W6013 | 3 | 3 | 3 | 3 | Stud - or 046S6025 | |||||||
| 046S6025 | 3 | 3 | 3 | 3 | Stud - or A046W6013 | ||||||||
| A046W6033 | 3 | 3 | 3 | 3 | Nut - Air Filter to Carburetter | ||||||||
| 7 | A046E6500 | 4 | Brush | Up to Eng. No. 0044 | |||||||||
| A046E6503 | 3 | 3 | 3 | 3 | Brush | From Eng. No. 0045 | |||||||
| 8 | 046S6022 | 1 | 1 | 1 | 1 | Mounting Bracket | |||||||
| A046W6035 | 1 | 1 | 1 | 1 | Nut - Mounting Bracket Fixing | ||||||||
| A046W6034 | 1 | 1 | 1 | 1 | Nut - Mounting Bracket Fixing | ||||||||
| A046W6037 | 1 | 1 | 1 | 1 | Washer - Mounting Bracket Fixing | ||||||||
| 9 | 046S6002 | 1 | 1 | 1 | Breather Hose (697-04) | ||||||||
| 10 | 046S6015 | 1 | 1 | 1 | Breather Hose (697-04) | ||||||||
| 11 | 046S6007 | 1 | 1 | 1 | Breather Hose (697-04) | ||||||||
| 12 | 046S6017 | 1 | 1 | 1 | Breather Hose (697-04) | ||||||||
| 13 | 046S6014 | 1 | 1 | 1 | Connector (697-04) or A046E6498 | ||||||||
| A046E6498 | 1 | 1 | 1 | Connector (697-04) or 046S6014 | |||||||||
| 14 | 046S6010 | 1 | 1 | 1 | Capsule (697-04) or A046E6468 | ||||||||
| A046E6468 | 1 | 1 | 1 | Capsule (697-04) or 046S6010 | |||||||||
| 15 | A046S6029 | 1 | 1 | 1 | Valve - Non Return | ||||||||
| 16 | A046S6030 | 1 | 1 | 1 | 1 | Clip - Valve Mounting | |||||||
| A046W6032 | 1 | 1 | 1 | Nut (697-04) | |||||||||
| A046W6031 | 1 | 1 | 1 | Washer (697-04) | |||||||||
| A046W6034 | 1 | Nut (821-30) | |||||||||||
| A046W6037 | 1 | Washer (821-30) | |||||||||||
| 17 | 046E6273 | 1 | 1 | 1 | Hose Clip (697-04) | ||||||||
| 18 | A046S6031 | 1 | 1 | 1 | Hose Clip (697-04) | ||||||||
| 19 | A054E6031 | 1 | Breather Hose (821-30) | ||||||||||
| 20 | A054E6044 | 1 | Breather Hose (821-30) | ||||||||||
| 21 | A054E6045 | 1 | Breather Hose (821-30) | ||||||||||
| 23 | A046S6032 | 1 | Connector (821-30) | ||||||||||
| 24 | A046S6033 | 1 | Valve - Non Return (821-30) | ||||||||||
| 25 | A046S6034 | 4 | Hose Clip (821-30) | ||||||||||
| 27 | S046S6035 | 2 | Hose Clip (821-30) | ||||||||||
| 28 | A046S6036 | 1 | Mounting bracket - Non Return valve (821-30) | ||||||||||
| A046W6032 | 1 | Nut (821-30) Mounting Bracket Fixing | |||||||||||
| A046W6038 | 1 | Washer (821-30) Mounting Bracket Fixing |
