LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

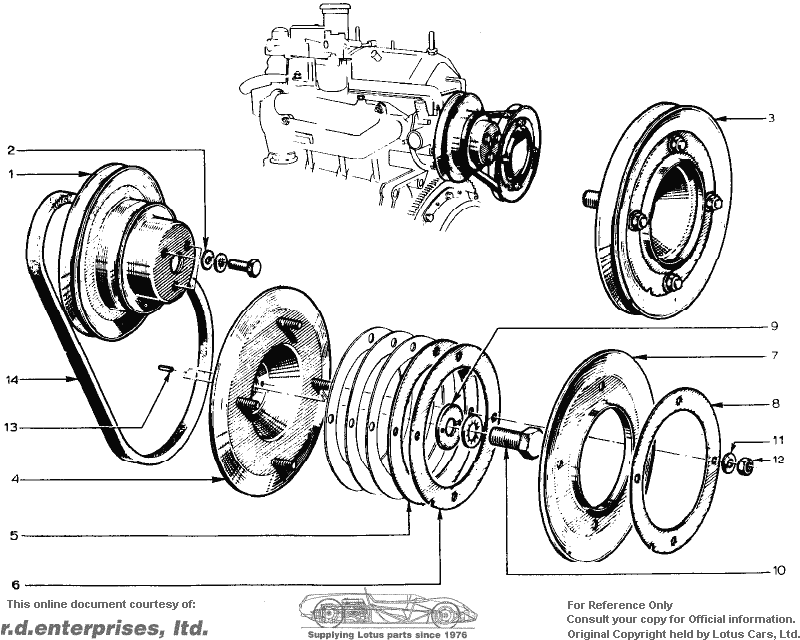

Section EQ -- Engine -- Pulleys and Belts


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046E62991 1                 Water pump pulley - replaced by A046E6488 after exhausting old stocks first Up to Eng. No. ?
 A046E64881 1 1               Water pump pulley 697-04 From Eng. No. ?
 A046E64891 1 1 1             Water pump pulley 697-04 From Eng. No. ? - 821-30 From Eng. No. 0001
2 046E61543 3 3 3             Washer - Pulley to water pump
 A046W60013 3 3 3             Star Washer - Pulley to water pump
 A046W60493 3 3 3             Bolt - 8 x 14 mm. - Pulley to water pump
3 046E63051 1 1               Camshaft Pulley Up to Eng. No. 1066
 A054E60701 1 1 1             Camshaft Pulley 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001
4 046E63021 1 1               Hub - Camshaft pulley - replaced by A054E6072 and A054E6073 after exhausting old stock Up to Eng. No. 1066
 A054E60721 1 1 1             Hub - Camshaft pulley 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001
5 046E63034 4 4 4             Disc - Camshaft pulley - 0.95
6 046E63042 2 2 2             Disc - Camshaft pulley - 0.50
7 046E63071 1 1 1             Hub support - replaced by A054E6074 after exhausting old stock
 A054E60741 1 1 1             Hub Support
8 046E63041 1 1 1             Support ring
9 046E63061 1 1 1             Locating washer (697-04) - replaced by A054E6074 and 2 of A054E6072 after exhausting old stock Up to Eng. No. 1066
 A054E60731 1 1 1             Locating washer 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001
10 046E63111 1 1 1             Bolt - Pulley to camshaft
 A046W60481 1 1 1             Washer - Pulley to camshaft
11 046E63094 4 4 4             Dished washer - Pulley retaining
12 046E63104 4 4 4             Nut - Pulley retaining
13 046E63012 2 2               Dowel pin - replaced by A054E6071 and 1 of A054E6072 Locating washer Up to Eng. No. 1066
 A054E60722 2 2 2             Dowel pin 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001
14 046E63001 1 1 1             Drive Belt - Cam to Water Pump
