 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

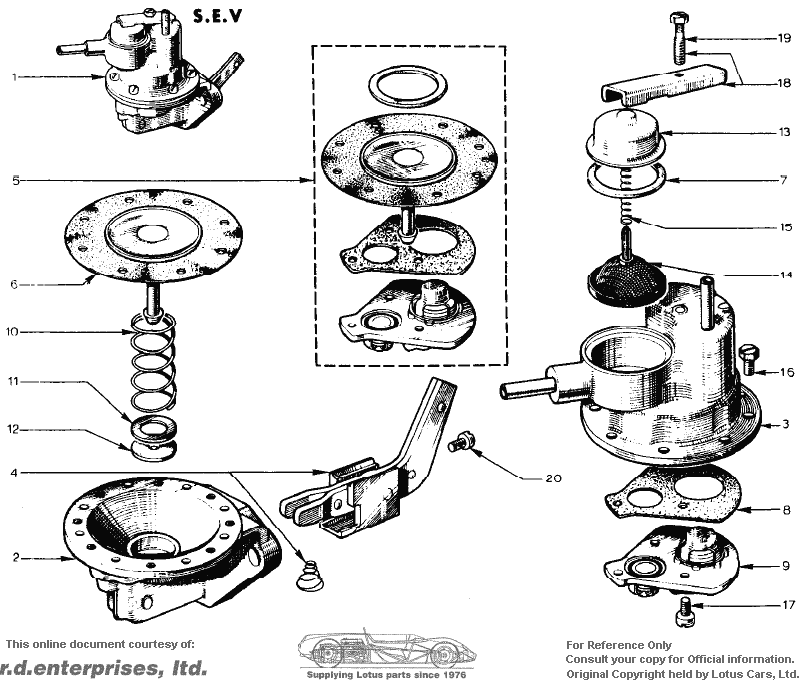

| 1 | A054E6075 | 1 | 1 | 1 | 1 | Fuel pump - replaced by A065E6000 | |||||||
| A065E6000 | 1 | 1 | 1 | 1 | Fuel pump | From Chassis No. 2520 and 1178 | |||||||
| 2 | 046E6320 | 1 | 1 | 1 | Housing - lower (697-04) | ||||||||
| A054E6076 | 1 | Housing - lower (821-30) | |||||||||||
| 3 | 046E6329 | 1 | 1 | 1 | Housing - upper (697-04) | ||||||||
| A054E6078 | 1 | Housing - upper (821-30) | |||||||||||
| 4 | 046E6319 | 1 | 1 | 1 | Lever Assembly - with spring (697-04) | ||||||||
| A054E6080 | 1 | Lever Assembly - with spring (821-30) | |||||||||||
| 5 | 046E6314 | 1 | 1 | 1 | Repair Kit (697-04) | ||||||||
| A05E6081 | 1 | Repair Kit (821-30) | |||||||||||
| 6 | 046E6315 | 1 | 1 | 1 | Diaphragm (697-04) | ||||||||
| A054E6083 | 1 | Diaphragm (821-30) | |||||||||||
| 7 | 046E6325 | 1 | 1 | 1 | 1 | Fuel Pump Filter Bowl Gasket | |||||||
| 8 | 046E6331 | 1 | 1 | 1 | 1 | Fuel Pump Housing to Valve Assembly Gasket | |||||||
| 9 | 046E6332 | 1 | 1 | 1 | 1 | Valve Assembly | |||||||
| 10 | 046E6316 | 1 | 1 | Spring - diaphragm (697-04) | |||||||||
| A054E6085 | 1 | Spring - diaphragm (821-30) | |||||||||||
| 11 | 046E6317 | 1 | 1 | 1 | Washer - diaphragm spring (697-04) | ||||||||
| A054E6087 | 1 | Washer - diaphragm spring (821-30) | |||||||||||
| 12 | 046E6318 | 1 | 1 | 1 | Washer - diaphragm spring seat (697-04) | ||||||||
| 054E6086 | 1 | Washer - diaphragm spring seat (821-30) | |||||||||||
| 13 | 046E6324 | 1 | 1 | 1 | 1 | Cover | |||||||
| 14 | 046E6327 | 1 | 1 | 1 | 1 | Filter | |||||||
| 15 | 046E6326 | 1 | 1 | 1 | 1 | Spring - fuel filter | |||||||
| 16 | 046E6328 | 8 | 8 | 8 | 8 | Screw - upper housing to lower housing | |||||||
| 17 | 046E6328 | 2 | 2 | 2 | 2 | Screw - valve assembly to upper housing | |||||||
| 18 | 046E6323 | 1 | 1 | 1 | 1 | Clamp - filter cover | |||||||
| 19 | 046E6322 | 1 | 1 | 1 | 1 | Screw - filter cover | |||||||
| 20 | 046E6330 | 1 | 1 | 1 | 1 | Screw - lever to housing |
