 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

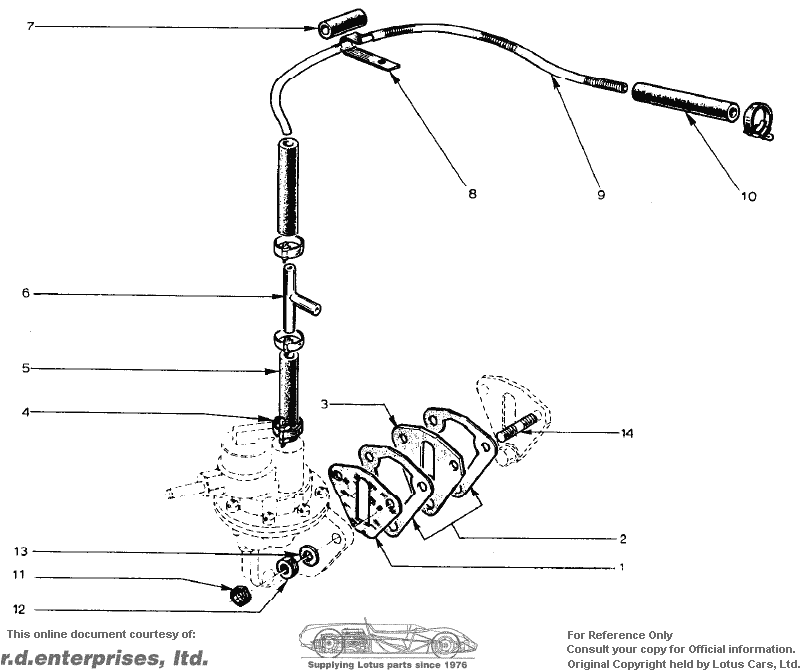

| 046E6334 | 1 | 1 | 1 | Fuel pump mounting Gasket - replaced by A046E6490 | |||||||||
| 1 | A046E6490 | 1 | 1 | 1 | Fuel pump mounting Gasket | ||||||||
| 2 | A054E6050 | 2 | Fuel pump mounting Gasket - (821-30) | ||||||||||
| A054E6050 | 1 | 1 | 1 | Fuel pump mounting Gasket - (697-04) | |||||||||
| 3 | 046E6015 | 1 | 1 | 1 | 1 | Fuel pump mounting Gasket | |||||||
| 4 | 046E6342 | 4 | 4 | 4 | 4 | Clip - Fuel line | To chassis No. 2519 and 1177 | ||||||
| 5 | 046E6338 | 1 | 1 | 1 | 1 | Hose - Pump Connection to Fuel line | To chassis No. 2519 and 1177 | ||||||
| 6 | 046E6491 | 1 | 1 | 1 | Three-way Connection (697-04) replaced by A046E6492 after exhausting old stock | To chassis No. 2519 and 1177 | |||||||
| A046E6492 | 1 | 1 | 1 | 1 | Three-way Connection | ||||||||
| 7 | 046E6340 | 1 | 1 | 1 | 1 | Sleeve - 25 mm. Long | |||||||
| 8 | 046E6337 | 1 | 1 | 1 | 1 | Clip - Fuel line support | |||||||
| 9 | 046E6343 | 1 | 1 | 1 | Fuel Line - Pump to Carburettor | To chassis No. 2519 and 1177 | |||||||
| A054E6090 | 1 | Fuel Line - Pump to Carburettor | To chassis No. 2519 and 1177 | ||||||||||
| A054E6001 | 1 | 1 | Fuel Line - Pump to Carburettor | From chassis No. 2520 and 1178 | |||||||||
| 10 | A046E6495 ? | Hose - Fuel line to T piece fuel line to carburetter | |||||||||||
| 11 | 046E6344 | 2 | 2 | 2 | 2 | Lock Nut - Fuel pump to cylinder block | |||||||
| 12 | 046E6339 | 2 | 2 | 2 | 2 | Nut - Fuel pump to cylinder block | |||||||
| 13 | 046E6336 | 2 | 2 | 2 | 2 | Washer - Fuel pump to cylinder block | |||||||
| 14 | A046E6496 | 2 | 2 | 2 | 2 | Stud - Fuel pump to cylinder block |
