LOTUS EUROPA TC/TCS PARTS MANUAL

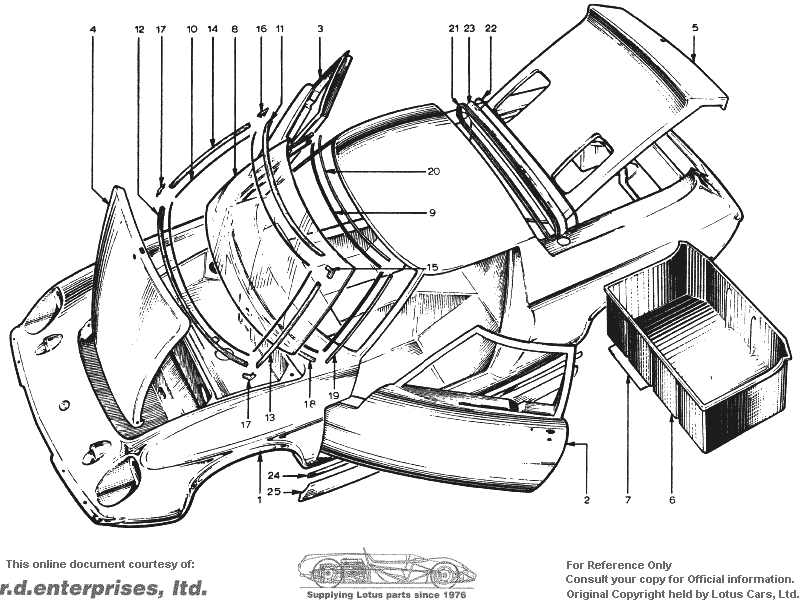

Section BA -- Body -- Major Panels and Trim

Item	Lotus #											Description	Change Point Notes Bulletin Reference
BA 1	A074B1800S					1		1		*		Shell - Body
	A074B1801S					1		1			*	Shell - Body
	B074B1801S						1					Shell - Body
	C074B1801S								1			Shell - Body
BA 2	A065B0089S					1	1	1	1			Shell - Door - L/H
BA 3	A065B0088S					1	1	1	1			Shell - Door - R/H
BA 4	A464B0030S					1	1	1	1			Lid - Bonnet
	X054B1820Z					1	1	1	1			Strip - Bonnet Reinforcing	SB - Service III 1969/40
	434					6	6	6	6			Rivet - Strip Securing	SB - Service III 1969/40
	A036B6213V					1	1	1	1			Sealing - Front Stowage Compartment
BA 5	A074B0040Z					1	1	1	1			Engine Compartment Lid
BA 6	X054B0059S					1	1	1	1			Luggage Box
	6BN					2	2	2	2			Bolt - Box Securing
	113					2	2	2	2			Washer - Box Securing
BA 7	X046B2005Z					1	1	1	1			Shield - Heat - Metal
	X046B2007Z					1	1	1	1			Shield - Heat - Asbestos
BA 8	X046B0029Z					1	1	1	1			Windscreen
	X054B0029Z					1	1	1	1			Windscreen - tinted (Optional)
BA 9	X050B6182Z					1	1	1	1			Strip - Sealing
BA 10	A050B6181Z					1	1	1	1			Strip - Sealing
	A054B6132Z					1	1	1	1			Blocks - Mounting
BA 11	A054B6118Z					1	1	1	1			Finish - External Top
BA 12	A054B6119Z					1	1	1	1			Finish - External Bottom
BA 13	A054B6120Z					1	1	1	1			Finish - External L/H
BA 14	A054B6126Z					1	1	1	1			Finish - External T/H
BA 15	A054B6133Z					1	1	1	1			Clip - Top L/H Corner
BA 16	A054B6134Z					1	1	1	1			Clip - Top R/H Corner
BA 17	A050B6190Z					2	2	2	2			Clip - Bottom Corner
BA 18	A054B6122Z					1	1	1	1			Trim - windscreen Internal Base
BA 19	A054B6123Z					2	2	2	2			Trim - Windscreen Internal Side
BA 20	A054B1621Z					1	1	1	1			Trim - windscreen Internal Top	Up to Chassis No. 1657P - 1088Q - 2468R
	B050B6209Z					1	1	1	1			Trim - windscreen Internal Top and Sides	From Chassis No. 1658P - 1089Q - 2469R
BA 21	X054B1769Z					1	1	1	1			Weatherstrip - Rear Screen
BA 22	65U0009Z					1	1	1	1			Strip - Filler - Rear Screen
BA 23	X046B0349Z					1	1	1	1			Rear Screen
	B046B0349Z					1	1	1	1			Rear Screen Shaded (Optional)
BA 24	A074U6004Z					2	2	2	2			Strip - Trim
	A074U6006Z					18	18	18	18			Clip - Attaching
BA 25	A074U0111Z					1	1	1	1			Panel - Trim - L/H
	A074U0110Z					1	1	1	1			Panel - trim R/H
	A074U6007Z											Tape - Double Sided Adhesive (As Required)
	A074U6005Z					10	10	10	10			Clip - Trim Panel Attaching
