LOTUS EUROPA TC/TCS PARTS MANUAL

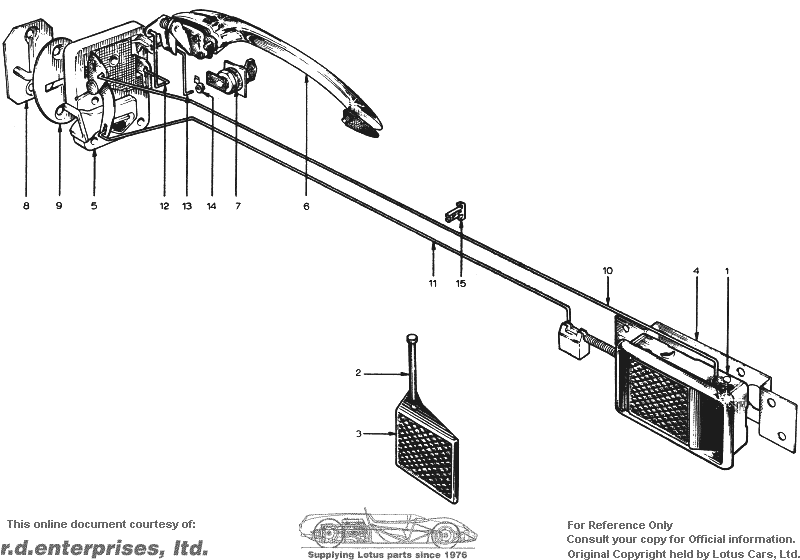

Section BD -- Body -- Door Hardware


Item	Lotus #					Description	Change Point Notes Bulletin Reference
BD 1	X036B6151W	1	1	1	1	Control - Remote L/H
	X036B6152W	1	1	1	1	Control - Remote R/H
BD 2	A036B6257Z	2	2	2	2	Pin - Control - Remote
BD 3	A036B6256Z	2	2	2	2	Flap - Control - Remote
BD 4	X046B1629Z	1	1	1	1	Bracket - Remote Control (Inside Door Handle) (Inside Door Handle) Mounting L/H
	X046B1630Z	1	1	1	1	Bracket - Remote Control (Inside Door Handle) Mounting R/H
	339	8	8	8	8	Fastner - Bracket to Door
	RSTS1008	6	6	6	6	Screw - Remote Control (Inside Door Handle) to Bracket
	208	6	6	6	6	Nut - Remote Control (Inside Door Handle) to Bracket
BD 5	X036B6048W	1	1	1	1	Assembly - Door Lock Mechanism
	X036B6049W	1	1	1	1	Assembly - Door Lock Mechanism
	335A	8	8	8	8	Screw - Lock Mechanism to Door
	208	8	8	8	8	Nut - Lock Mechanism to Door
BD 6	X036B6052W	1	1	1	1	Door Handle - Exterior LH
	X036B6053W	1	1	1	1	Door Handle - Exterior RH
	X036B6168Z	2	2	2	2	Door Handle Gasket - Small
	X036B6164Z	2	2	2	2	Door Handle Gasket - Large
	38	4	4	4	4	Screw - Door Handle to Door
	101	4	4	4	4	Washer - Door Handle to Door
BD 7	A036B6191W	2	2	2	2	Lock - Private
	LUFN120F	2	2	2	2	Nut - Secuting - Lock - Private
	A036B1921Z	2	2	2	2	Plate - Securing - Lock - Private
	X036B6096Z	2	2	2	2	Gasket
BD 8	X036B6054Z	2	2	2	2	Plate - Striker
BD 9	X036B6055Z	2	2	2	2	Plate - Cover
	335A	4	4	4	4	Screw - Striking Securing
BD 10	X054B1411Z	1	1	1	1	Rod - Locking - L/H
	X054B1412Z	1	1	1	1	Rod - Locking - R/H
BD 11	Z054B1413Z	1	1	1	1	Rod - Opening - L/H
	X054B1414Z	1	1	1	1	Rod - Opening - R/H
BD 12	X054B1415Z	1	1	1	1	Rod - Door Handle - L/H
	X054B1416Z	1	1	1	1	Rod - Door Handle - R/H
BD 13	X054B1423Z	1	1	1	1	Rod - Key Locking - L/H
	X054B1424Z	1	1	1	1	Rod - Key Locking - R/H
BD 14	A036U6001	12	12	12	12	Assembly - Clip and Brush
BD 15	X036B6155Z	4	4	4	4	Anti-rattle Clip
