Notes Bulletin Reference | |||||||||||||

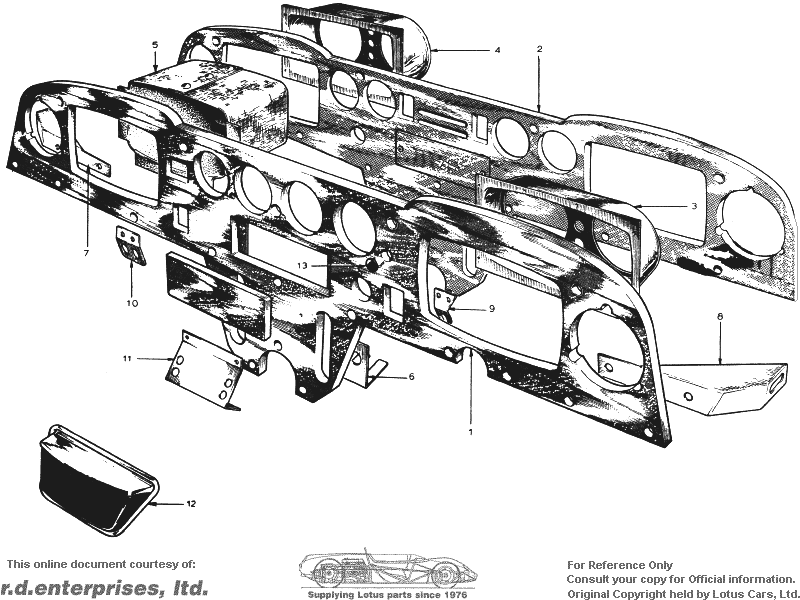

BJ 1 | A074B0238Z | 1 | 1 | * | Facia Panel | ||||||||
B054B0237Z | 1 | 1 | 1 | * | Facia Panel | ||||||||
BJ 2 | B074U0105Z | 1 | Facia Panel | ||||||||||
BJ 3 | B054B1408Z | 1 | 1 | 1 | * | * | Binnacle - Instrument | ||||||
BJ 4 | A074V0713Z | 1 | Binnacle - Instrument | ||||||||||
BJ 5 | X054B0195Z | 1 | 1 | 1 | 1 | Box - Glove | |||||||
303C | 17 | 17 | 17 | 17 | Screw - Binnacle and Glove Box Securing | ||||||||
BJ 6 | A074U0008Z | 2 | 2 | 2 | 2 | Bracket - Facia Mounting | |||||||
BJ 7 | B054B1459Z | 1 | 1 | 1 | 1 | Bracket. Facia End Support | |||||||
BJ 8 | B054B1460Z | 1 | 1 | 1 | 1 | Bracket. Facia End Support | |||||||
335D | 4 | 4 | 4 | 4 | Screw - Facia Mounting | ||||||||
3 | 2 | 2 | 2 | 2 | Screw - Facia Mounting | ||||||||
110 | 2 | 2 | 2 | 2 | Washer - Plain - Facia Mounting | ||||||||
110A | 2 | 2 | 2 | 2 | Washer - Fibre - Facia Mounting | ||||||||
208 | 2 | 2 | 2 | 2 | Nut - Facia Mounting | ||||||||
BJ 9 | X054B1463Z | 1 | 1 | 1 | * | * | Speedometer Trip Cable Bracket | ||||||
BJ 10 | X054B1539Z | 1 | 1 | 1 | * | Speedometer Trip Cable And Test Switch Bracket | |||||||
BJ 11 | X054B0560Z | 1 | 1 | 1 | 1 | Bracket - Ashtray Mounting | |||||||
BJ 12 | X054B6014W | 1 | 1 | 1 | 1 | Ashtray | |||||||
BJ 13 | X036B6114Z | Clip - Facia Blanking (As Required) |
