LOTUS EUROPA TC/TCS PARTS MANUAL

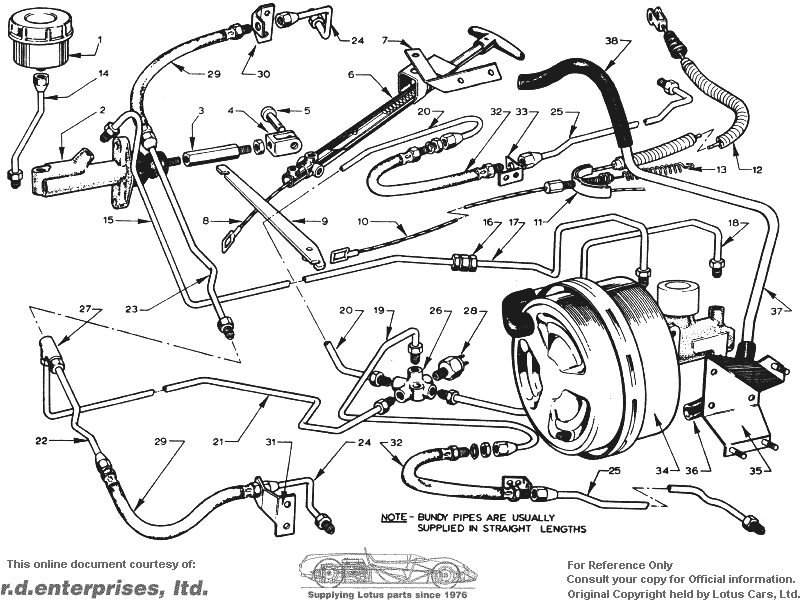

Section JA -- Brakes -- Handbrake and Single System


Item	Lotus #							Description	Change Point Notes Bulletin Reference
JA 1	X046J6019W	1		1		*	*	Reservoir
	X046J6041Z	1		1		*	*	Cap - Reservoir
	X046J0048Z	1		1		*	*	Bracket - mounting
JA 2	X046J6018W	1		1		*	*	Cylinder - Master
	X046J6015Z	1		1		*	*	Kit - Master Cylinder Servicing
JA 3	A074J0193Z	1		1		*	*	Adaptor - Push Rod
JA 4	X046J0076Z	1		1		*	*	Clevis - Push Rod
JA 5	W0084	1		1		*	*	Pin - Clevis
	W0086	1		1		*	*	Pin Split - Pin Clevis
JA 6	C036J0752W	1		1		*		Assembly - Handbrake R/H
	C036J0751W	1	1	1	1		*	Assembly - Handbrake L/H
	7	1	1	1	1			Screw - Handbrake to Bracket
	211	1	1	1	1			Nut - Handbrake to Bracket
JA 7	X054J0104Z	1		1		*		Bracket - Handbrake R/H
	X054J0103Z	1		1			*	Bracket - Handbrake L/H
	7	2	2	2	2			Screw - Bracket - Securing
	118	2	2	2	2			Washer - Bracket - Securing
	211	2	2	2	2			Nut - Bracket - Securing
	A074M6016Z		1		1			Microswitch - Handbrake
JA 8	A074J0747Z	1	1	1	1			Cable - Handbrake to Multiplying Lever
JA 9	A074J0750Z	1		1		*		Lever - Multiplying - R/H
	A074J0749Z	1	1	1	1		*	Lever - Multiplying - L/H
	A074J0748Z	1	1	1	1			Bolt - Pivot - Lever - Multiplying
	W0078	1	1	1	1			Washer - Lever - Multiplying
JA 10	B074J0194Z	1	1	1	1			Cable - Handbrake - Intermediate
JA 11	X046J6028Z	1	1	1	1			Compensator
JA 12	X046J0069Z	1	1	1	1			Cable - Handbrake - Rear
JA 13	X046J0016Z	1	1	1	1			Spring - Handbrake - Cable Return
JA 14	X046G6032Z	1		1		*	*	Pipe - Bundy - Reservoir to Master Cylinder
JA 15	X050J6052Z	1		1		*	*	Pipe - Bundy - Master Cylinder to Two Way Union
JA 16	A050J6085Z	1		1		*	*	Union - two Way
JA 17	A074J6010Z	1		1		*	*	Pipe - Bundy - Two Way Union to Servo Unit
JA 18	X026J6019Z	1		1		*	*	Pipe - Bundy - Servo Unit to Five Way Union
JA 19	X046J6045Z	1		1		*	*	Pipe - Bundy - Five Way Union to L/H rear Hose
JA 20	Z036J6093Z	1		1		*	*	Pipe - Bundy - Five Way Union to R/H Rear Hose
JA 21	A054J6006Z	1		1		*	*	Pipe - Bundy - Five Way Union to three Way Union
JA 22	A036J6089Z	1		1		*	*	Pipe - Bundy - Three Way Union to L/H Front Hose
JA 23	A074J6007Z	1		1		*	*	Pipe - Bundy - Three Way Union to R/H front Hose
JA 24	X046J6044Z	2		2		*	*	Pipe - Bundy - Hose to Caliper
JA 25	A074J6032Z	2		2		*	*	Pipe - Bundy - Hose to Rear Brake
JA 26	X036J6015Z	1		1		*	*	Union - Five Way
	A050B1938Z	1		1		*	*	Spacer - Five Way Union to Chassis
JA 27	X036J6016Z	1		1		*	*	Union - Three Way
JA 28	X046J6025Z	1		1		*	*	Stop Lamp Switch
	X036J6059	1		1		*	*	Seal - Stop Lamp Switch
JA 29	X046J6016Z	2		2		*	*	Hose - Flexible - Front
	216	2		2		*	*	Nut - Securing - Hose - Flexible - Front
JA 30	X046J2001Z	1		1		*	*	Bracket - Hose Securing - R/H
JA 31	X046J2000Z	1		1		*	*	Bracket - Hose Securing - L/H
JA 32	X046J6020Z	2		2		*	*	Hose - Flexible - Rear
	216	2		2		*	*	Nut - Securing - Hose - Flexible - Rear
JA 33	X046J2002Z	2		2		*	*	Bracket - Hose Securing
JA 34	X054J6023W	1		1		*	*	Unit - Brake Servo
JA 35	D036J0162Z	1		1		*	*	Bracket - Servo Unit Mounting
	C036J0089Z	1		1		*	*	Plate - Backing
JA 36	A074J6005Z	1		1		*	*	Hose - Vacuum
	A074J6019Z	1		1		*	*	Hose - Vacuum
JA 37	A074J6009Z	1		1		*	*	Pipe - Bundy - Vacuum
JA 38	X050J6078Z	1		1		*	*	Hose - Vacuum
