LOTUS EUROPA TC/TCS PARTS MANUAL

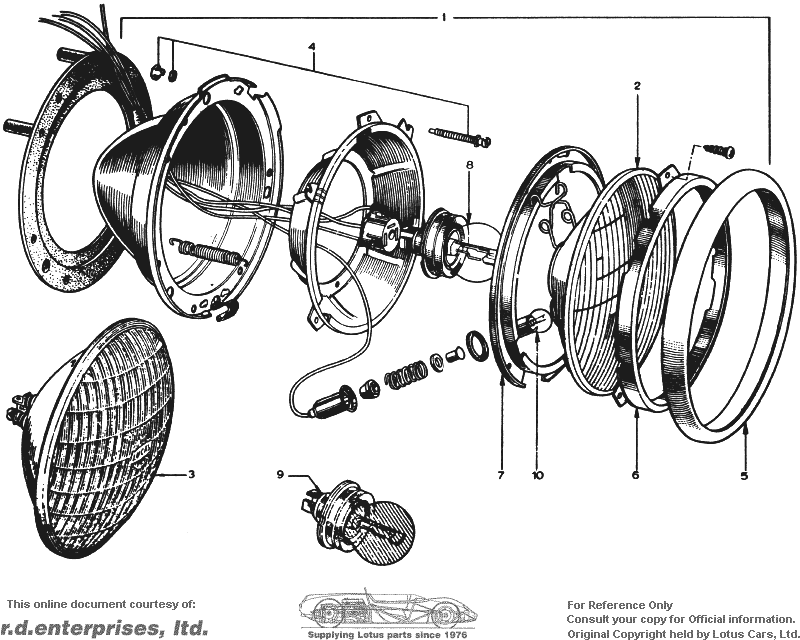

Section MB -- Electrical -- Headlights


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
MB 1A074M6002W22*Assembly - Headlamps
A054M6064W2*Assembly - Headlamp (replaced by A074M6002W)
X046M6197W22*Assembly - Headlamp (clear bulb and pilot bulb)
A054M6061W22*Assembly - Headlamp (yellow bulb and pilot bulb)
A036M6078W22*Assembly - Headlamp (clear bulb only)
A036M6302W22Assembly - Headlamp
MB 2X046M6185Z22Unit - Lamp - Headlamp
MB 3X036M6081Z22*Unit - Lamp - Headlamp
X036M6083Z22Unit - Lamp - Headlamp
MB 4X046M6187Z4444Screw - Trimmer - Headlamp Assembly
MB 5X036M6036Z2222Headlamp Bezel
MB 6X046M6163Z2222Headlamp Rim
X046M6162Z2222Headlamp Assembly Gasket
MB 7X036M6044Z2222Headlamp Assembly Gasket
MB 8X036M6360Z22*Bulb (? #) - Clear - Headlamp Assembly
MB 9A036M6361Z22*Bulb (? #) - Yellow - Headlamp Assembly
MB 10A036M6330Z22**Bulb (989) - Pilot - Headlamp Assembly
RSTS10148888Screw - Headlamp Mounting
X036B6004Z8888Nut - Headlamp Mounting
