 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

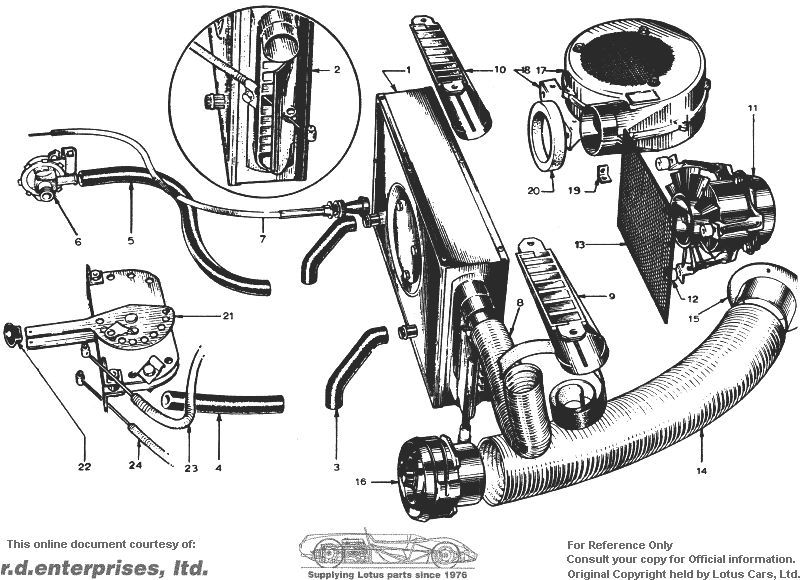

| PA 1 | A050P0706W | 1 | 1 | 1 | * | * | Unit - Heater | ||||||
| PA 2 | A074P6002Z | 1 | Unit - Heater | ||||||||||
| PA 3 | X050P0057V | 2 | 2 | 2 | 2 | Hose - Heater to Chassis Transfer Pipe | |||||||
| PA 4 | A046P6010V | Hose - Chassis Transfer Pipe to Main System (As Required) | |||||||||||
| PA 5 | A046P6010V | Hose - Control Valve to Chassis Transfer Pipe (As Required) | |||||||||||
| PA 6 | X036P6003Z | 1 | 1 | 1 | 1 | Heater Control Valve | |||||||
| PA 7 | C074P0075Z | 1 | 1 | 1 | 1 | Heater Cable | |||||||
| PA 8 | X036P0046Z | 2 | 2 | 2 | 2 | Hose - Heater to Demist L/H | |||||||
| PA 9 | X050P6047Z | 1 | 1 | 1 | 1 | Demist Nozzle L/H | |||||||
| PA 10 | X050P6048Z | 1 | 1 | 1 | 1 | Demist Nozzle R/H | |||||||
| PA 11 | X046P6195Z | 1 | 1 | * | * | Motor - Heater | |||||||
| PA 12 | W0050 | 3 | 3 | * | * | Spacer | |||||||
| PA 13 | Z054B1510Z | 1 | 1 | 1 | * | * | Grille | ||||||
| PA 14 | X046P6006Z | 2 | 2 | 2 | 2 | Hose - Face Level Vent | |||||||
| PA 15 | X054P0059Z | 2 | 2 | 2 | 2 | Connector - Inlet | |||||||
| 434 | 6 | 6 | 6 | 6 | Rivet - Connector Securing - Connector - Inlet | ||||||||
| PA 16 | X046B6124Z | 2 | 2 | 2 | 2 | Face Level Vent | |||||||
| PA 17 | X046M6205Z | 1 | 1 | Motor - Heater | |||||||||
| PA 18 | A074B2110Z | 1 | 1 | Bracket | |||||||||
| PA 19 | A074B2111Z | 1 | 1 | Bracket | |||||||||
| PA 20 | X026B0373Z | 1 | 1 | Seal | |||||||||
| PA 21 | A050P0049Z | 1 | Control - Heater | ||||||||||
| PA 22 | A050P0050Z | 2 | Knob - Heater Control | ||||||||||
| 342 | 2 | Screw - Knob Securing | |||||||||||
| PA 23 | A074P0077Z | 1 | Heater Cable (long) | ||||||||||
| PA 24 | A074P0076Z | 1 | Heater Cable Control (short) |
