LOTUS EUROPA TC/TCS PARTS MANUAL

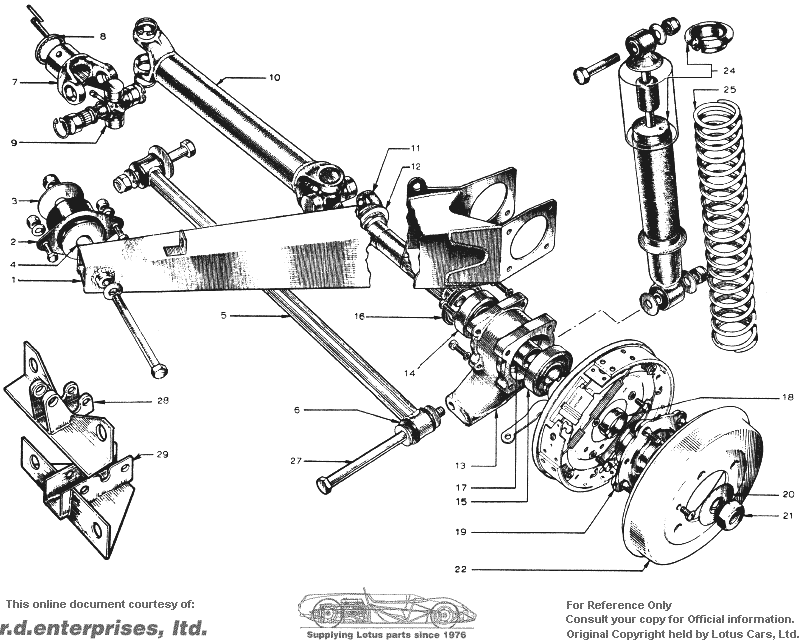

Section DA -- Suspension -- Rear


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
DA 1A074D0197Z11**Arm - Radius L/H
A074D0217Z11**Arm - Radius L/H
A074D0198Z11**Arm - Radius R/H
A074D0216Z11**Arm - Radius R/H
DA 2X046D6000Z2222Resilient Mounting (Metalastic)
36A2222Bolt - Mounting to Arm
1282222Washer - Mounting to Arm
DA 3A07W3212222 2Washer - Mounting to Arm
2162222Nut - Mounting to Arm
134444Bolt - Mounting to Chassis
1194444Washer - Mounting to Chassis
2114444Nut - Mounting to Chassis
DA 4A074D0205ZShim - Radius Arm 1/8 ins. (As Required)
A074D0206ZShim - Radius Arm 1/16 ins. (As Required)
DA 5B074D0195Z2222Link - Lower
DA 6A074D6002Z4444Bush - Lower Link
372222Bolt - Lower Link to Gearbox
128F4444Washer - Lower Link to Gearbox
2192222Nut - Lower Link to Gearbox
A074D0756W22**Assembly - Drive Shaft (Use with Type 336 Gearbox)
A074D0749W2222Assembly - Drive Shaft (Use with Type 352/365 Gearboxes)
DA 7A074D6006Z22**Yoke (For A074D0756W)
A074D6010Z2222Yoke (For A074D0749W)
DA 9A074D6008Z4444Universal Joint (For A074D0756W and A074D0749W)
DA 10A074D6004Z2222Shaft - Inboard Drive (For A074D0756W and A074D0749W)
DA 11A074D6005Z2222Outboard Drive Shaft (Rear Stub Axle) (For A074D0756W and A074D0749W)
DA 12A074D0196Z2222Flinger (For A074D0756W and A074D0749W)
8X046R0022ZSpacer Ring (0.405 ins. Undersize) (As Required)
X046R0023ZSpacer Ring (0.410 ins. Undersize) (As Required)
X046R0024ZSpacer Ring (1st Oversize) (As Required)
X046R0025ZSpacer Ring (2nd Oversize 0.420 ins) (As Required)
X046R0026ZSpacer Ring (3rd Oversize) (As Required)
A054D0187ZShim (0.005 ins) (As Required)
A054D0188ZShim (0.015 ins) (As Required)
X046R6000Z22Tension Pin - Outer - Dive Shaft to Gearbox
X046R6001Z22Tension Pin - Inner - Drive Shaft to Final Drive
A074F6013Z2222Pin - Drive Shaft to GearboxUse on A074D0749W)
DA 13B074D0193Z11**Housing - Wheel Bearing L/H
E074D0193Z11**Housing - Wheel Bearing - R/H
B074D0194Z11**Housing - Wheel Bearing - R/H
E074D0194Z11**Housing - Wheel Bearing - R/H
108888Setscrew - Attaching - Housing - Wheel Bearing
1168888Washer - Attaching - Housing - Wheel Bearing
DA 14A074D6001Z22**Wheel Bearing Rear Inner
X036D6017Z22**Wheel Bearing Rear Inner
DA 15X036D6017Z2222Wheel Bearing Rear Outer
DA 16A074D6000Z22**Seal - Wheel Bearing
A074D6009Z22**Seal - Wheel Bearing
17X046D0148Z22**Spacer - Wheel Bearing to Wheel Bearing
A074D0215Z22**Spacer - Wheel Bearing to Wheel Bearing
DA 18A074D0208Z2222Spacer - Hub
DA 19A046D0007Y22**Hub
A074D0214Y22**Hub
DA 20X046D6006Z2222Washer - Hub Retaining
DA 21X046D6007Z2222Hub Retaining Nut
DA 22X046J6023Z22**Brake Drum
A074J6036Z22**Brake Drum
KUFS04081111Brake Drum to Hub Attaching Screw
X036D6002Z8888Wheel StudThread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455"
D074D0757W2222Assembly - Damper/Spring
DA 24A074D6007W2222Damper Assembly - Assembly - Damper/Spring
DA 25B026C0010A2222Spring - Assembly - Damper/Spring
DA 27A074D0209Z2222Bolt - Damper/Lower Link to Housing
1294444Washer - Damper/Lower Link to Housing
12BF4444Washer - Damper/Lower Link to Housing
2192222Nut - Damper/Lower Link to Housing
372222Bolt - Damper to Cross Beam
1292222Washer - Damper to Cross Beam
2192222Nut - Damper to Cross Beam
DA 28C074A0721W1111Mounting - Lower Link to Type 352/365 Gearbox
DA 29B074A0716W11**Mounting - Lower Link to Type 336 Gearbox
