LOTUS EUROPA TC/TCS PARTS MANUAL

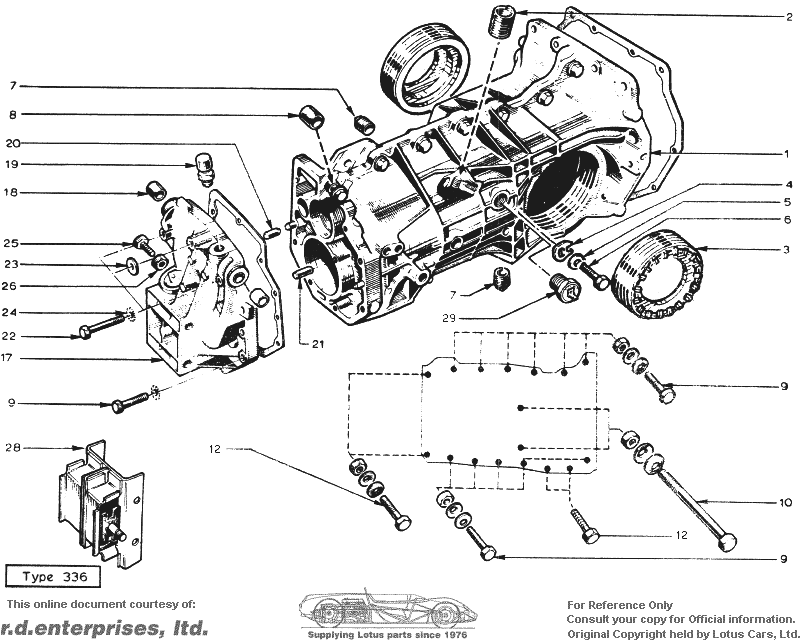

Section FC -- Transmission -- Casing (336)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
A074F6002W11**Gearbox Assebbly
FC 1B046F6014Z11**Gearbox Casing
FC 2X046F601311**Helicoil Insert
FC 3Z046F6013Z22**Nut - Bearing Retaining
FC 4X046F6001Z22**Tabwasher
FC 5X046F6015Z22**Washer
FC 6A046W6083Z22**Bolt
FC 7A046W6019Z22**Plug - Oil Filler/DrainReplaces X046F6002Z
FC 8A074F6046Z22**Spacer
FC 9X046F6003Z1616**Bolt - 7 x 30
A046W6086Z1111**Washer - Bolt - 7 x 30
A046W6093Z55**Star Washer - Bolt - 7 x 30
A046W6084Z1212**Nut - Bolt - 7 x 30
FC 10A046W6088Z22**Bolt - 8 x 110
A046W6091Z44**Washer - Bolt - 8 x 110
A046W6087Z22**Nut Bolt - 8 x 110
FC 12A046W6090Z44**Bolt - 7 x 40
A046W6085Z44**Washer - Bolt - 7 x 40
A046W6084Z22**Nut - Bolt - 7 x 40
FC 17B046F6008Z11**Rear Casing
FC 18A046F6006Z22**BushReplaces X046F6006Z
FC 19X046F6005Z11**Breather
FC 20X046F6004Z22**Dowell Pin
FC 21X046F6009Z11**Dowell Pin
FC 22A046F6092Z33**Bolt - 7 x 50
FC 24A046W6093Z55**Star Washer - Bolt - 7 x 50
FC 23A046W6036Z11**Washer
FC 25A046W6095Z11**Bolt
FC 26A046W6094Z11**Nut
FC 28B046F6195Z11**Mounting
X046E6462Z22**Bolt - Mouting Attachment
A046W6002Z22**Washer - Mouting Attachment
A046W6105Z22**Nut - Mouting Attachment
FC 29A065M6002Z11**Switch - Reversing Lamp - c/w Washer
