LOTUS EUROPA TC/TCS PARTS MANUAL

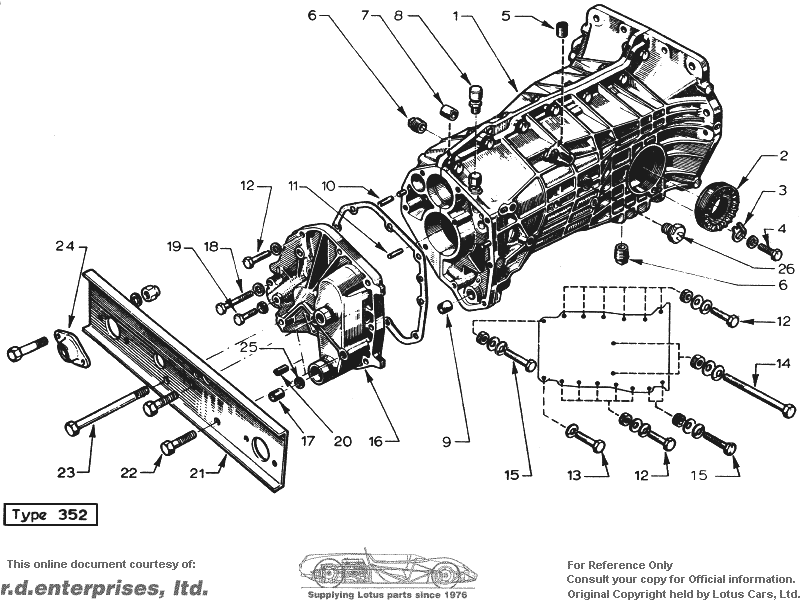

Section FD -- Transmission -- Casing (352)


Item	Lotus #					Description	Change Point Notes Bulletin Reference
	A074F6003W	1	1	1	1	Gearbox Assembly (13 mm diameter control shaft)
	B074F6003W	1	1	1	1	Gearbox Assembly (15 mm diameter control shaft)	Gearbox Ser. No. 17000 onwards
FD 1	A074F6044Z	1	1	1	1	Gearbox Casing (13 mm diameter control shaft)
	A074F6030Z	1	1	1	1	Gearbox Casing (15 mm diameter control shaft)
FD 2	A074F6045Z	2	2	2	2	Nut - Bearing Retaining
FD 3	X046F6015Z	2	2	2	2	Tabwasher
	A074W6000Z	2	2	2	2	Washer
FD 4	A074W6001Z	2	2	2	2	Bolt
FD 5	X046F6013Z	1	1	1	1	Helicoil Insert
FD 6	A074F6046Z	2	2	2	2	Plug - Oil Filler/Drain
FD 7	X046F6003Z	2	2	2	2	Dowel
FD 8	X046F6005Z	1	1	1	1	Breather
FD 9	Z074F6051Z	1	1	1	1	Bush (13 mm diameter control shaft)
	A074F6026Z	1	1	1	1	Bush (15 mm diameter control shaft)
FD 10	X046F6004Z	2	2	2	2	Dowel Pin
FD 11	X046F6009Z	1	1	1	1	Dowel Pin
FD 12	A046W6086Z	17	17	17	17	Bolt - 7 x 35
	A074W6003Z	11	11	11	11	Washer - Bolt - 7 x 35
	A046W6084Z	11	11	11	11	Nut - Bolt - 7 x 35
FD 13	A046W6089Z	1	1	1	1	Bolt - 7 x 35
	A074W6003Z	1	1	1	1	Washer
FD 14	A046W6088Z	2	2	2	2	Bolt - 8 x 10
	A074W6004Z	4	4	4	4	Washer - Bolt - 8 x 10
	A046W6087Z	2	2	2	2	Nut - Bolt - 8 x 10
FD 15	A046W6090Z	3	3	3	3	Bolt - 7 x 40
	A074W6003Z	6	6	6	6	Washer - Bolt - 7 x 40
	A046W6084	3	3	3	3	Nut - Bolt - 7 x 40
FD 16	A074F6048Z	1	1	1	1	Rear Casing	For 13 mm. dia. Control shaft
	A074F6013Z	1	1	1	1	Rear Casing	For 15 mm. dia. Contrlo shaft
	A074F6047Z	1	1	1	1	Rear to Main Casings Gasket
FD 17	A074F6050Z	1	1	1	1	Bush	For 13 mm. dia. Control shaft
	A074F6027Z	1	1	1	1	Bush	For 15 mm. dia. Control shaft
FD 18	A046W6092Z	1	1	1	1	Bolt - 7 x 70
FD 19	A074W6006Z	1	1	1	1	Bolt
	A074W6007Z	1	1	1	1	Washer - For Bolt A074W6006Z
FD 20	A074F6049Z	2	2	2	2	Helicoil Insert
FD 21	B074F0185Z	1	1	1	1	Mounting Plate - Gearbox to Chassis
	C074F0185Z	1	1	1	1	Mounting Plate - Gearbox to Chassis	Introduced at Unit No. U.K. ? European ? Federal ?
FD 22	XMMB0720	2	2	2	2	Bolt - Attaching	For B074F0185Z
	A074F0288Z	2	2	2	2	Stud - Attaching	For C074F0185Z
FD 23	XMMB0780	1	1	1	1	Bolt - Attaching	For B074F0185Z
	A074F0287Z	1	1	1	1	Stud - Attaching	For C074F0185Z
	L08W0000	3	3	3	3	Washer - Shakeproof	For C074F0185Z
	YMMN070F	3	3	3	3	Nut	For C074F0185Z
FD 24	A074F6008Z	2	2	2	2	Mounting
	XMMB12100Z	2	2	2	2	Bolt - Attaching - gearbox Mounting to Chassis
FD 25	A074W6008Z	1	1	1	1	Washer	For 13 mm. dia. control shaft
	A074F6028Z	1	1	1	1	Washer	For 15 mm. dia. control shaft
FD 26	A065M6002Z	1	1	1	1	Reversing Lamp Switch
