LOTUS EUROPA TC/TCS PARTS MANUAL

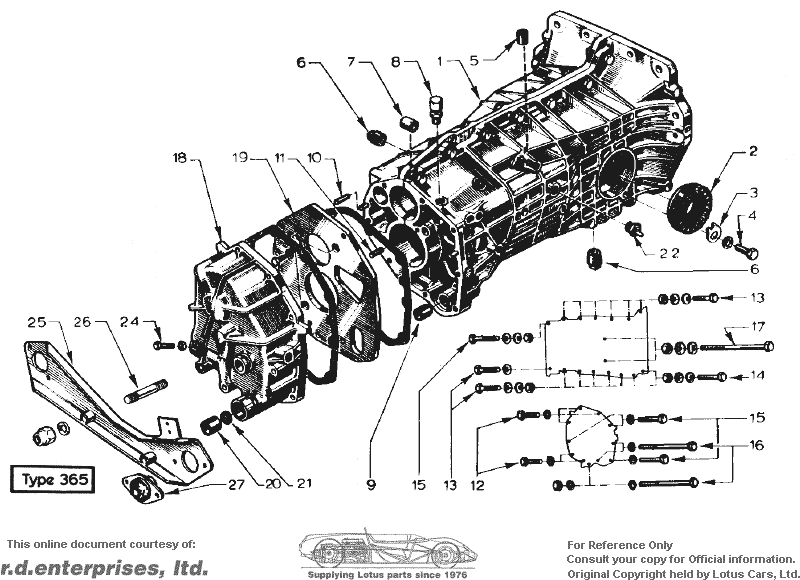

Section FE -- Transmission -- Casing (365)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
A074F6019S11++Gearbox Assembly
FE 1A074F6077Z11++Gearbox Casing - Casting No. 7700512218Type 365-04
A074F6175Z11++Gearbox Casting - Casing No. 7700598122Type 365-07
FE 2A074F6045Z22++Nut - Bearing Retaining
FE 3X046F6015Z22++Tab Washer
A046W6083Z22++Washer
FE 4A074W6001Z22++Bolt
FE 5X046F6013Z11++Helicoil Insert
FE 6A074F6046Z22++Plug - Oil Filler/Drain
FE 7X046F6003Z22++Dowel
FE 8X046F6005Z11++Breather
FE 9A074F6026Z11++Bush
FE 10A074F6080Z11++Dowel Pin
FE 11X046F6009Z11++Dowel Pin
FE 12A074F6087Z55++Bolt
A046W6011Z55++Washer - Star
FE 13A046W6086Z1212++Bolt - 7 x 30 mm
A074W6003Z2323++Washer
A046W6084Z1111++Nut
FE 14A046W6089Z22++Bolt - 7 x 35 mm
A074W6003Z44++Washer - 7 x 35 mm
A046W6084Z22++Nut - 7 x 35 mm
FE 15A046W6090Z44++Bolt - 7 x 40
A046W6011Z33++Star Washer - Bolt - 7 x 40
A074W6003Z22++Washer - Bolt - 7 x 40
A046W6084Z11++Nut - Bolt - 7 x 40
FE 16A074F6079Z33++Bolt - 7 x 80
A046W6011Z44++Star Washer - Bolt - 7 x 80
A046W6084Z11++Nut - Bolt - 7 x 80
FE 17A046W6088Z22++Bolt - 8 x 110
A046W6004Z44++Washer - Bolt - 8 x 110
A046W6087Z22++Nut - Bolt - 8 x 110
FE 18A074F6085Z11++Rear Casing
A074F6082Z11++Rear Casing to Spacer Plate Gasket
FE 19A074F6018Z11++Spacer Plate
A074F6084Z33++Bolt - Attaching - Spacer Plate
A074F6083Z33++Washer - Attaching - Spacer Plate
A074F6047Z11++Spacer Plate to Main Casing Gasket
FE 20A074F6027Z11++Bush
FE 21A074W6028Z11++Washer
A074F6076Z11++Oil Seal
FE 22A074F6078Z11++Reversing Lamp Switch
FE 24A074F6086Z11++Bolt
A074W6007Z11++Washer - Bolt
FE 25A074F0220Z11++Mounting Plate - Gearbox to Chassis
FE 26A074F0289Z22++Stud
L0BW000022++Washer - Stud
YMMN070F22++Nut - Stud
FE 27A074F6008Z22++Mounting
