Europa TC/TCS Parts Manual -- Section FH

LOTUS EUROPA TC/TCS PARTS MANUAL

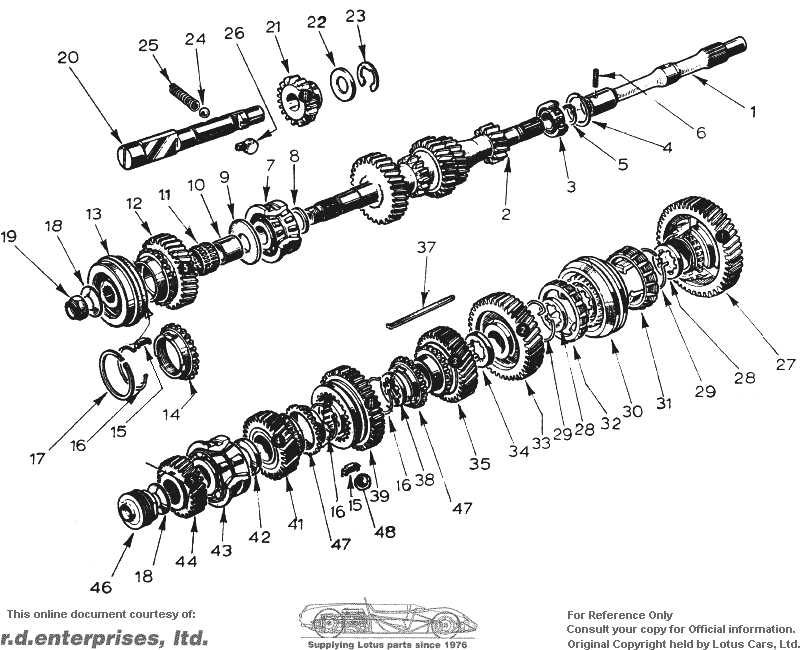

Section FH -- Transmission -- Gearset (365)


Item	Lotus #					Description	Change Point Notes Bulletin Reference
FH 1	A074F6052Z	1	1	*	*	Clutch Shaft
FH 2	A074F6091Z	1	1	*	*	Primary Shaft
FH 3	A074F6090Z	1	1	*	*	Bearing
FH 4	A074F6088Z	1	1	*	*	Circlip - Inner
FH 5	A074F6089Z	1	1	*	*	Circlip - Outer
FH 6	A046F6033Z	1	1	*	*	Roll Pin
FH 7	A074F6122Z	1	1	*	*	Bearing
FH 8	A074F6100Z	AR	AR	*	*	Shim - 3.00 mm.
	A074F6101Z	AR	AR	*	*	Shim - 3.25 mm.
	A074F6102Z	AR	AR	*	*	Shim - 3.50 mm.
	A074F6103Z	AR	AR	*	*	Shim - 3.75 mm.
	A074F6104Z	AR	AR	*	*	Shim - 4.00 mm.
	A074F6105Z	AR	AR	*	*	Shim - 4.25 mm.
	A074F6106Z	AR	AR	*	*	Shim - 4.50 mm.
	A074F6107Z	AR	AR	*	*	Shim - 4.75 mm.
	A074F6108Z	AR	AR	*	*	Shim - 5.00 mm.
	A074F6109Z	AR	AR	*	*	Shim - 5.25 mm.
	A074F6110Z	AR	AR	*	*	Shim - 5.50 mm.
FH 9	A074F6121Z	1	1	*	*	Spacer
FH 10	A074F6120Z	1	1	*	*	Sleeve
FH 11	A074F6119Z	1	1	*	*	Bearing - Needle Roller
FH 12	A074F6223Z	1	1	*	*	Gear - 5th Primary
FH 13	A074F6117Z	1	1	*	*	Synchroniser Hub 5th
FH 14	A074F6095Z	1	1	*	*	Synchroniser Ring
FH 15	A074F6114Z	6	6	*	*	Key	Type 365-04
	A074F6114Z	3	3	*	*	Key	Type 365-07
FH 16	A074F6099Z	3	3	*	*	Synchro Spring
FH 17	A074F6115Z	1	1	*	*	Circlip Inner
FH 18	A074F6112Z	2	2	*	*	Washer
FH 19	A074F6116Z	1	1	*	*	Nut
FH 20	A074F6123Z	1	1	*	*	Shaft - Reverse Gear
FH 21	A074F6124Z	1	1	*	*	Reverse Gear
FH 22	X046F6026Z	1	1	*	*	Thrust Washer
FH 23	X046F6025Z	1	1	*	*	Circlip
FH 24	A046F6030Z	1	1	*	*	Locking Ball
FH 25	A046F6029Z	1	1	*	*	Spring
FH 26	A046F6032Z	1	1	*	*	Guide
FH 27	X046F6053Z	1	1	*	*	Gear - 1st	Type 365-04
	A074F6161Z	1	1	*	*	Gear - 1st	Type 365-07
FH 28	X046F6038Z	2	2	*	*	Stop Washer
FH 29	X046F6052Z	2	2	*	*	Synchro Spring
FH 30	A074F6092Z	1	1	*	*	Synchro Hub 1st/2nd (Medium Blue)	Type 365-04
	A074F6163Z	1	1	*	*	Synchro Hub 1st/2nd (Yellow/Red)	Type 365-07
	A074F6093Z	1	1	*	*	Synchro Hub 1st/2nd (Yelow)	Type 365-04
	A074F6164Z	1	1	*	*	Synchro Hub 1st/2nd (White)	Type 365-07
FH 31	X046F6054Z	1	1	*	*	Synchro Ring 1st	Type 365-04
	A074F6162Z	1	1	*	*	Synchro Ring 1st	Type 365-07
FH 32	X046F6060Z	1	1	*	*	Synchro Ring 2nd	Type 365-04
	A074F6165Z	1	1	*	*	Synchro Ring 2nd	Type 365-07
FH 33	A074F6094Z	1	1	*	*	Gear 2nd	Type 365-04
	A074F6166Z	1	1	*	*	Gear 2nd	Type 365-07
FH 34	X046F6062Z	1	1	*	*	Stop Washer
FH 35	A074F6125Z	1	1	*	*	Gear 3rd	Type 365-04
	A074F6167Z	1	1	*	*	Gear 3rd	Type 365-07
FH 37	X046F6063Z	1	1	*	*	Key
FH 38	A074F6076Z	1	1	*	*	Stop Washer	Type 365-04
	A074F6169Z	1	1	*	*	Stop Washer	Type 365-07
FH 39	A074F6097Z	1	1	*	*	Synchro Hub 3rd/4th (Medium Blue)	Type 365-04
	A074F6170Z	1	1	*	*	Synchro Hub 3rd/4th (Blue/White)	Type 365-07
	A074F6098Z	1	1	*	*	Synchro Hub 3rd/4th (Yellow)	Type 365-04
	A074F6171Z	1	1	*	*	Synchro Hub 3rd/4th (Red)	Type 365-07
FH 41	A074F6156Z	1	1	*	*	Gear 4th	Type 365-04
	A074F6173Z	1	1	*	*	Gear 4th	Type 365-07
FH 42	X046F6064Z			*	*	Shim - 3.50 mm. (As Required)	Type 365-04 Only
	X046F6065Z			*	*	Shim - 3.55 mm. (As Required)	Type 365-04 Only
	X046F6066Z			*	*	Shim - 3.60 mm. (As Required)	Type 365-04 Only
	X046F6067Z			*	*	Shim - 3.65 mm. (As Required)	Type 365-04 Only
	X046F6068Z			*	*	Shim - 3.70 mm. (As Required)	Type 365-04 Only
	X046F6069Z			*	*	Shim - 3.75 mm. (As Required)	Type 365-04 Only
	X046F6070Z			*	*	Shim - 3.80 mm. (As Required)	Type 365-04 Only
	X046F6071Z			*	*	Shim - 3.85 mm. (As Required)	Type 365-04 Only
	X046F6072Z			*	*	Shim - 3.90 mm. (As Required)	Type 365-04 Only
	X046F6073Z			*	*	Shim - 3.95 mm. (As Required)	Type 365-04 Only
	X046F6074Z			*	*	Shim - 4.00 mm. (As Required)	Type 365-04 Only
	X046F6075Z			*	*	Shim - 4.05 mm. (As Required)	Type 365-04 Only
	X046F6076Z			*	*	Shim - 4.10 mm. (As Required)	Type 365-04 Only
FH 43	X046F6048Z	1	1	*	*	Bearing
FH 44	A074F0224Z	1	1	*	*	Gear 5th Primary
FH 46	A074F6111Z	1	1	*	*	Speedometer Worm Nut
FH 47	A074F6095Z	2	2	*	*	Synchro Ring	Type 365-04
	A074F6168Z	2	2	*	*	Synchro Ring	Type 365-07
FH 48	A074F6172Z	3	3	*	*	Locking Ball	Type 365-07
