Europa TC/TCS Parts Manual -- Section FJ

LOTUS EUROPA TC/TCS PARTS MANUAL

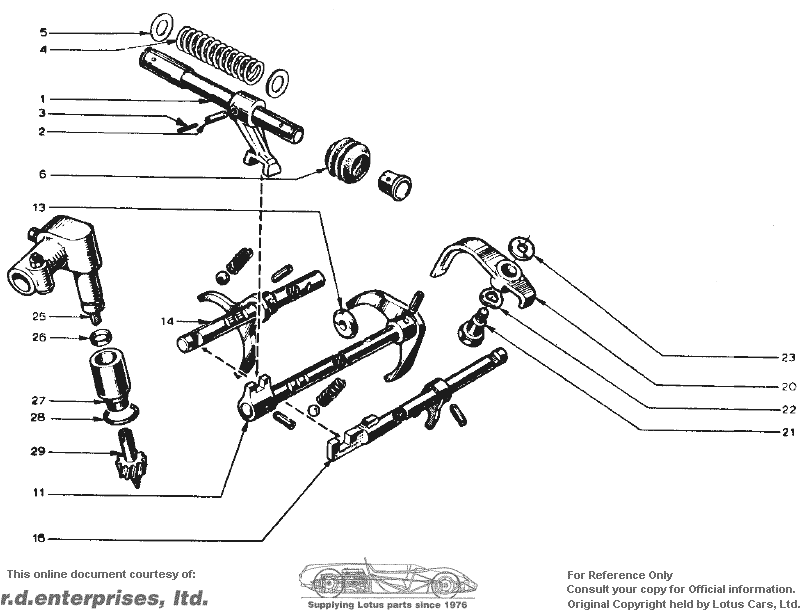

Item	Lotus #					Description	Change Point Notes Bulletin Reference
FJ 1	X054F6005Z	1	1	*	*	Cross Shaft
FJ 2	A074F6004Z	1	1	*	*	Roll Pin - Outer
FJ 3	X046F6097Z	1	1	*	*	Roll Pin - Inner
FJ 4	A046F6049Z	1	1	*	*	Spring
FJ 5	A046F6093Z	2	2	*	*	Washer
FJ 6	X046F6092Z	2	2	*	*	Cap - Protective
FJ 11	D046F6109Z	1	1	*	*	Selector Shaft with Fork 1st/2nd Gear
	X046F6110Z	1	1	*	*	Roll Pin - Fork Attaching - Selector Shaft with Fork 1st/2nd Gear
	A046F6030Z	1	1	*	*	Locking Ball - Selector Shaft with Fork 1st/2nd Gear
	A046F6101Z	1	1	*	*	Spring - Selector Shaft with Fork 1st/2nd Gear
FJ 13	X046F6100Z	1	1	*	*	Locking Disc
FJ 14	B046F6103Z	1	1	*	*	Selector Shaft with Fork 3rd/4th Gear
	X046F6099Z	1	1	*	*	roll Pin - Fork Attaching - Selector Shaft with Fork 3rd/4th Gear
	A046F6030Z	1	1	*	*	Locking Ball - Selector Shaft with Fork 3rd/4th Gear
	A046F6101Z	1	1	*	*	Spring - Selector Shaft with Fork 3rd/4th Gear
FJ 16	X054F6006Z	1	1	*	*	Selector Shaft with Fork - Reverse Gear
	X046F6123Z	1	1	*	*	Roll Pin - Fork Attaching - Selector Shaft with Fork - Reverse Gear
FJ 20	X046F6120Z	1	1	*	*	Selector Reverse Gear (Pivot hole dia 12mm)
	X074F6038Z	1	1	*	*	Selector Reverse Gear (Pivot hole dia 14mm)
FJ 21	X046F6122Z	1	1	*	*	Pivot Bolt (Dia 12 mm)
	A074F6033Z	1	1	*	*	Pivot Bolt (Dia 14 mm)
FJ 22	X046F6121Z	1	1	*	*	Washer (I/D 12 mm)
	A074F6034Z	1	1	*	*	Washer (I/D 14 mm)
FJ 23	X046F6119Z	1	1	*	*	Spacer Washer
FJ 25	X046F6104Z	1	1	*	*	Speedometer Angle Drive
FJ 26	X046F6105Z	1	1	*	*	Ring Seal
FJ 27	X046F6106Z	1	1	*	*	Speedometer Drive Gear Guide
FJ 28	X046F6107Z	1	1	*	*	O Ring
FJ 29	X046F6108Z	1	1	*	*	Speedometer Drive Gear
