LOTUS EUROPA TC/TCS PARTS MANUAL

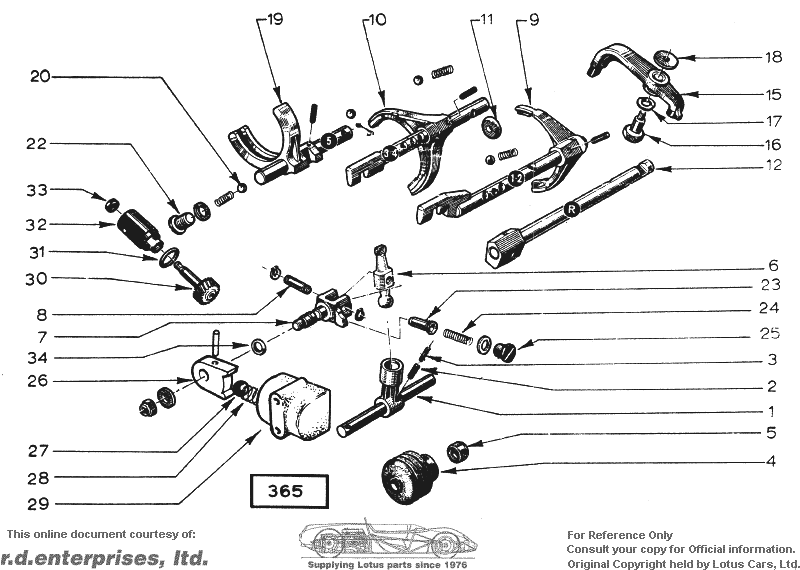

Section FL -- Transmission -- Shift Mechanism (365)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
FL 1A074F6133Z11**Control Shaft
FL 2A074F6074Z11**Roll Pin - Outer
FL 3A074F6073Z11**Roll Pin - Inner
FL 4A074F6067Z11**Cap - Protective
FL 5A074F6029Z11**Seal
FL 6A074F6128Z11**Rocking Lever
FL 7A074F6134Z11**Shaft - Rocking Lever
FL 8A074F6135Z11**Pivot Pin
A074F6062Z22**Circlip - Pivot Pin
FL 9A074F6126Z11**Selector Shaft with Fork - 1st/2nd Gear
X046F6099Z11**Roll Pin - Fork Attaching - Selector Shaft with Fork - 1st/2nd Gear
A046F6030Z11**Locking Ball - Selector Shaft with Fork - 1st/2nd Gear
A046F6101Z11**Spring - Selector Shaft with Fork - 1st/2nd Gear
FL 10A074F6144Z11**Selector Shaft with Fork - 3rd/4th GearType 365-04
A074F6176Z11**Selector Shaft with Fork - 3rd/4th GearType 365-07
X046F6099Z11**Roll Pin - Fork Attaching - Selector Shaft with Fork - 3rd/4th Gear
A046F6030Z11**Locking Ball - Selector Shaft with Fork - 3rd/4th Gear
A046F6101Z11**Spring - Selector Shaft with Fork - 3rd/4th Gear
FL 11Z046F6100Z11**Locing Disc
FL 12A074F6127Z11**Selector Shaft - Reverse
FL 15A074F6068Z11**Selector - Reverse Gear (Pivot Hole Dia. 12 mm)
A074F6032Z11**Selector - Reverse Gear (Pivot Hole Dia. 14 mm)
FL 16X046F6122Z11**Pivot Bolt (Dia 12 mm)Service Bulletin 1973/3-03
A074F6033Z11**Pivot Bolt (Dia 14 mm)
FL 17X046F6121Z11**Washer (I/D 12 mm)
A074F6037Z11**Washer (I/D 14 mm)
FL 18X046F6119Z11**Spacer Washer
FL 19A074F6141Z11**Selector Shaft with Fork 5th Gear
A074F6142Z11**Roll Pin - Fork Attaching - Selector Shaft with Fork 5th Gear
A074F6143Z11**Locking Ball - Selector Shaft with Fork 5th Gear
FL 20A046F6030Z11**Locking Ball
A074F6035Z11**Spring - Locking Ball
FL 22A074F6137Z11**Plug Screw
A074F6138Z11**Washer - Plug Screw
FL 23A074F6129Z11**Detent Plunger 5th Gear
FL 24A074F6130Z11**Detent Spring
FL 25A074F6132Z11**Plug Screw
A074F6131Z11**Washer - Plug Screw
FL 26B074V0225Z11**Cam Reverse Indent
A074F6023Z11**Pin Spirol 1/16 inch x 1.00 inch - Cam Reverse Indent
LMMN100F11**Nut - Cam Reverse Indent
FL 27B074F6014Z11**Indent Ball
FL 28B074F0206Z11**Indent Spring
FL 29B074F0212Z11**Housing Reverse Indent
A074F0213Z11**Cover Reverse Indent
FL 30A074F6136Z11**Speedometer Gear
FL 31A046F6107Z11**Seal
FL 32A074F6060Z11**Guide
FL 33X046F6105Z11**Ring Seal
FL 34A074F6178Z11**O Ring
