 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

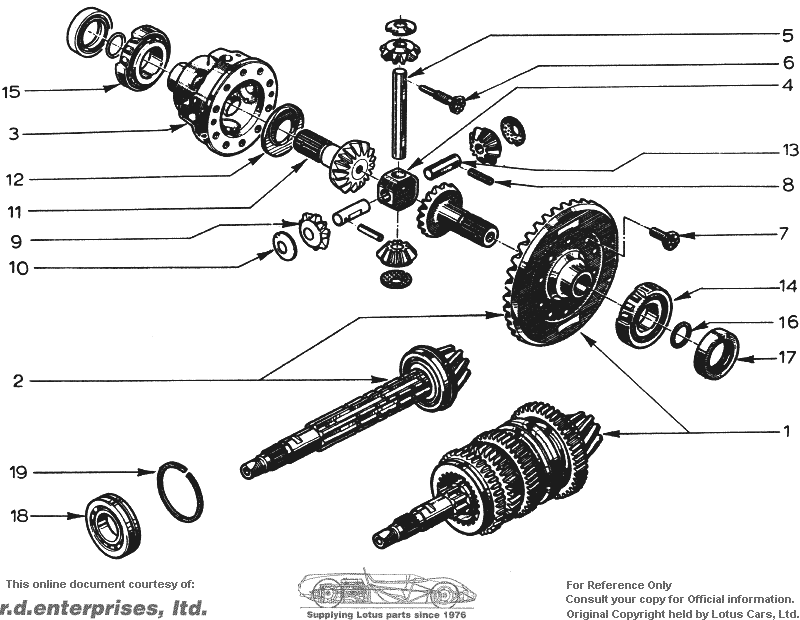

| FN 1 | A074F6151Z | 1 | 1 | * | * | Crown Wheel and Pinion with Gear Set | Type 365-04 | ||||||
| A074F6160Z | 1 | 1 | * | * | Crown Wheel and Pinion with Gear Set | Type 365-07 | |||||||
| FN 2 | A074F6152Z | 1 | 1 | * | * | Crown Wheel and Pinion (Yellow) | Type 365-04 | ||||||
| A074F6159Z | 1 | 1 | * | * | Crown Wheel and Pinion (Yellow) | Type 365-07 | |||||||
| A074F6153Z | 1 | 1 | * | * | Crown Wheel and Pinion (Blue) | Type 365-04 | |||||||
| A074F6158Z | 1 | 1 | * | * | Crown Wheel and Pinion (Blue) | Type 365-07 | |||||||
| FN 18 | A074F6036Z | 1 | 1 | * | * | Bearing - Pinion - Crown Wheel and Pinion | |||||||
| FN 19 | A074F6037Z | 1 | 1 | * | * | Circlip Bearing - Pinion - Crown Wheel and Pinion | |||||||
| FN 3 | A074F6155Z | 1 | 1 | * | * | Housing | |||||||
| FN 4 | A074F6154Z | 1 | 1 | * | * | Hub | |||||||
| FN 5 | A074F6146Z | 1 | 1 | * | * | Shaft | |||||||
| FN 6 | A074F6147Z | 1 | 1 | * | * | Pip Bolt - Crown Wheel Attaching | |||||||
| FN 7 | A074F6139Z | 9 | 9 | * | * | Bolt - Crown Wheel Attaching | |||||||
| FN 8 | A074F6149Z | 2 | 2 | * | * | Roll Pin | |||||||
| FN 9 | A074F6145Z | 4 | 4 | * | * | Planet Wheel | |||||||
| FN 10 | A074F6135Z | 4 | 4 | * | * | Thrust Washer | |||||||
| FN 11 | A074F6150Z | 2 | 2 | * | * | Sun Wheel | |||||||
| FN 12 | A074F6144Z | AR | AR | * | * | Washer 1.97 to 2.00 mm | |||||||
| A074F6145Z | AR | AR | * | * | Washer 2.03 to 2.08 mm | ||||||||
| FN 13 | A074F6148Z | 2 | 2 | * | * | Shaft | |||||||
| FN 14 | X046F6142Z | 1 | 1 | * | * | Bearing | |||||||
| FN 15 | X046F6126Z | 1 | 1 | * | * | Bearing | |||||||
| FN 16 | X046F6140Z | 2 | 2 | * | * | O Ring | |||||||
| FN 17 | Z74F6042Z | 2 | 2 | * | * | Seal | |||||||
| FN 18 | A074F6036Z | 1 | 1 | * | * | Bearing - Pinion | |||||||
| FN 19 | A074F6024Z | 1 | 1 | * | * | Circlip - Bearing |
