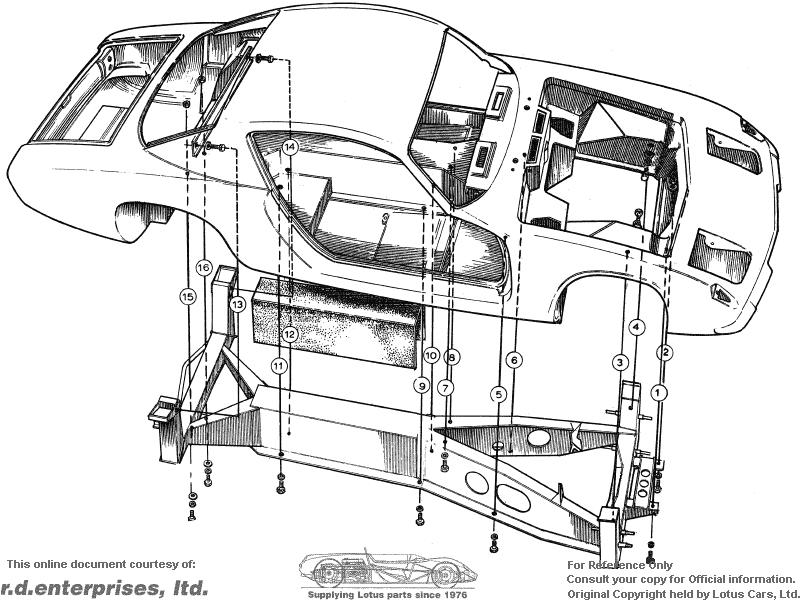

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | XUCS 0632 | 2 | Screw, Front Body to Chassis | ||||||||
| 2 | A06W1207 | 2 | Washer, Front Body to Chassis | ||||||||
| AUCN060F | 2 | Nut, Front Body to Chassis | |||||||||
| 3 | XUFB0620 | 2 | Bolt, Front Wheelarch to Chassis | ||||||||
| A06W1207 | AR | Washer, Front Wheelarch to Chassis | |||||||||
| 4 | L06W0000 | 2 | Washer, Front Wheelarch to Chassis | ||||||||
| 5 | XUFB0624 | 1 | Bolt, Facia Bracket to Chassis | ||||||||
| 6 | XUFB0626 | 1 | Bolt, Facia Bracket to Chassis | ||||||||
| 7 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| 8 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| 9 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| 10 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| 11 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| 12 | XUCS0616 | 1 | Screw, Bodyshell to Backbone | ||||||||
| L06W0000 | 6 | Washer, Bodyshell to Backbone | |||||||||
| 13 | XUFB0724 | 2 | Bolt, Rear Strut Brace to Body and Chassis | ||||||||
| 14 | A07W1405 | 2 | Washer, Rear Strut Brace to Body and Chassis | ||||||||
| 036B0685 | 2 | Abrasive Washer, Rear Strut Brace to Body and Chassis | |||||||||
| 15 | XUCBO624 | 2 | Screw, Rear Body to Chassis | ||||||||
| 16 | L06W0000 | 2 | Washer, Rear Body to Chassis | ||||||||
| AUCN060F | 2 | Nut, Rear Body to Chassis |
