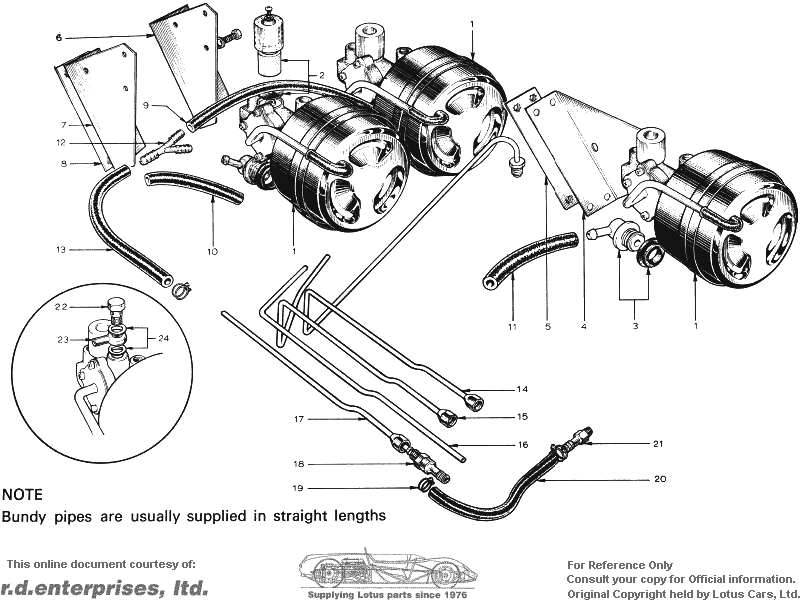

LOTUS ELAN+2 PARTS MANUAL

Section JE -- Braking -- Servo System


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
 050J6016          Servo Unit Upto Chassis No. 1856
 050J6077      Servo Unit From Chassis No. 1857
A050J6097          Servo Unit (integral non-return valve) From ?
050J6024      Element and Seal - Filter
         Non-Return Valve and Grommet
050J0088          Mounting Bracket - Servo
050J0089          Backing Plate - Bracket
050J0116            Mounting Bracket - Seervo, Front
A050J0088            Mounting Bracket - Seervo, Rear
A050J0089            Backing Plate - Bracket
 XUFS0412      Screw, Mounting Bracket to Body
 L04W0000      Washer, Mounting Bracket to Body
 XUFS0612      Screw, Mounting Bracket to Servo
 L06W0000      Washer, Mounting Bracket to Servo
036J6082            Hose - 'Y' Piece to Servo, Front
10 050J6088              Hose - 'Y' Piece to Servo, Rear Upto Chassis No. 1856
 050J6080            Hose - 'Y' Piece to Servo, Rear From Chassis No. 1857
 050J6078          Hose - Servo to Bundy From Chassis No. 1857 to ?
11 050J6055          Hose - Integral Non-return Valve to Bundy From ?
12 036J6658            'Y' Piece
13 050J6055              Hose - 'Y' Piece to Bundy Upto Chassis No. 1856
 036J6082            Hose - 'Y' Piece to Bundy From Chassis No. 1857
14 026J6091            Bundy - Servo to Non-Return Valve Upto Chassis No. 1856
15 050J6079          Bundy - Hose to Non-Return Valve From Chassis No. 1857 to ?
16 036J6081          Bundy - Hose to Hose From ?
17 050J6059            Bundy - Hose to Non-Return Valve
18 050J6019              Non-Return Valve Upto ?
19 026J6094            Clip - Hose Upto Chassis No. 1856
 026J6094          Clip - Hose From Chassis No. 1857
 026J6094              Clip - Hose Upto Chassis No. 1856
 026J6094            Clip - Hose From Chassis No. 1857
20 050J6017          Hose - Bundy to Manifold Connector Upto Chassis No. 1856
 050J6078          Hose - Bundy to Manifold Connector From Chassis No. 1857
 050J6026            Hose - Bundy to Manifold Connector From Chassis No. 1857
21 J26E0367              Connector - Manifold , Vacuum 'Take-Off'
