LOTUS ELAN+2 PARTS MANUAL

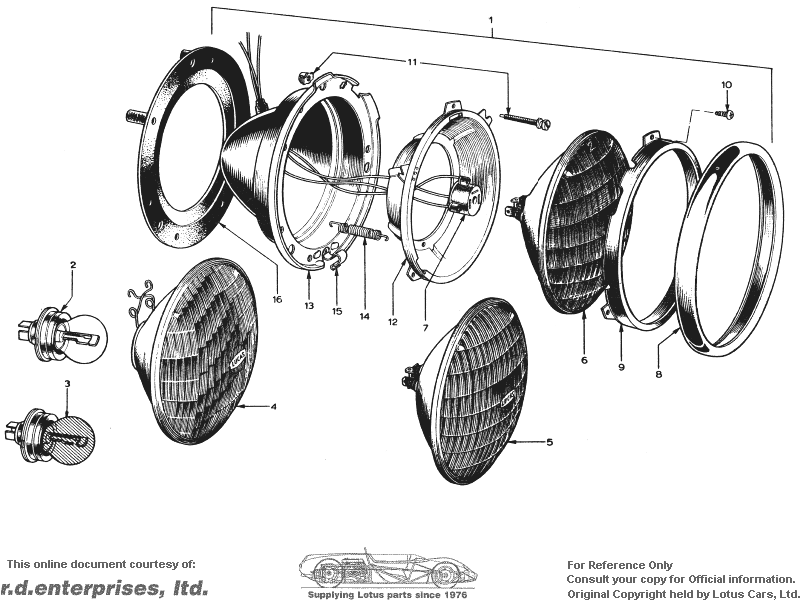

Section MC -- Electrical -- Headlamps


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
036M6077              Headlamp Assy.
 036M6078              Headlamp Assy. (except France, U.S.A. and Canada)
 036M6079              Headlamp Assy. (France only)
 036M6080              Headlamp Assy. (U.S.A. and Canada ) - replaced by 036m6302
 036M6302              Headlamp Assy. (U.S.A. and Canada )
A036M6360
(410)
             Bulb (Except U.S.A., Canada and France)
A036M6361
(411)
             Bulb, France Only (Yellow)
036M6034              Lens and Reflector Assy. (French only)
 036M6045              Spring - Bulb Retaining (French only)
A026M6021              Light Unit, (except France, U.S.A. and Canada)
 036M6081              Light Unit
036M6083              Light Unit, (U.S.A. and Canada only)
036M6035              Adaptor
036M6036              Bezel
036M6037              Rim
10 036M6038              Screw
11 036M6039              Screw Trimmer
12 036M6040              Rim Seating
13 036M6041              Lamp Body
14 036M6042              Spring
15 036M6043              Clip
16 036M6044              Gasket - Headlamp to Bowl
 RSTS1014              Screw, Headlamp to Bowl
 036B6004              Nut, Headlamp to Bowl
