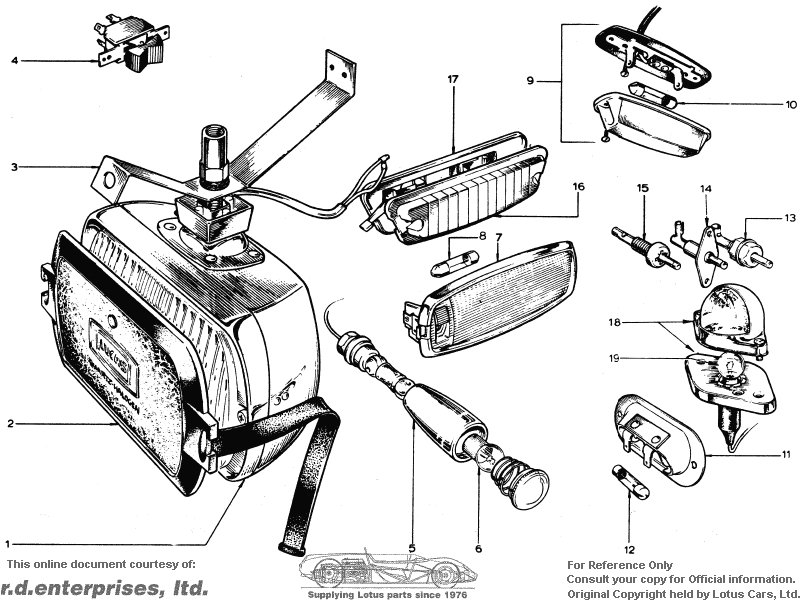

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | A050M6182 | 2 | 2 | 2 | Foglamp - except West Germany | From 7004100250L | |||||
| A050M6181 | 1 | 1 | 1 | Spotlamp - except West Germany | |||||||
| 2 | 050M6101 | 2 | 2 | 2 | Cover | ||||||
| 3 | 050B1615 | 2 | 2 | 2 | Mounting Bracket | Upto 7010140335L 7010140085M 7010140066N | |||||
| 434 | 4 | 4 | 4 | Rivet - Bracket | |||||||
| 4 | 036M6094 | 2 | 2 | 2 | Switch - Fog and Spot Lamps | ||||||
| 054B1465 | 2 | 2 | 2 | Bezel - Switch | |||||||
| 341 | 2 | 2 | 2 | Screw, Switch to Valence | |||||||
| A02W0603 | 8 | 8 | Washer, Switch to Valence | ||||||||
| 224 | 4 | 4 | 4 | Nut, Switch to Valence | |||||||
| 5 | 050M6090 | 1 | 1 | 1 | Map Lamp | ||||||
| 036B0685 | 1 | 1 | 1 | Washer, Map Lamp to Facia | |||||||
| A05W1606 | 1 | 1 | 1 | Washer, Map Lamp to Facia | |||||||
| 6 | A050M6169 | 1 | 1 | 1 | Bulb - Map Lamp | ||||||
| 7 | A050M6086 | 2 | 2 | 2 | Interior Lamp | ||||||
| 050M6086 | 1 | 1 | 1 | Lamp - Glove Box | |||||||
| KSTS0608 | 1 | 1 | 1 | Screw, Lamp to Glove Box | |||||||
| 036B6001 | 1 | 1 | 1 | Nut, Lamp to Glove Box | |||||||
| 050B1612 | 2 | 2 | 2 | Mounting Bracket - Interior Lamp | |||||||
| 050B1674 | 2 | 2 | 2 | Back Cover - INterior Lamp | |||||||
| 050M6004 | 1 | Buzzer - Interior Lamp | From 7001020001N | ||||||||
| 8 | A036M6339 | 2 | 2 | 2 | Bulb - Interior Lamp, Optional | ||||||
| A050M6156 | 2 | 2 | 2 | Bulb - Interior Lamp, Optional | |||||||
| 9 | 036M6148 | 1 | 1 | 1 | Lamp - Boot Illumination | ||||||
| 10 | A050M6168 (254) | 1 | 1 | 1 | Bulb - Boot Illumination | ||||||
| 11 | 050M6086 | 2 | 2 | 2 | Lamp - Door Edge (white) | ||||||
| 050M6086A | 2 | 2 | 2 | Lamp - Door Edge (Red) - (replaced by A050M6138) | |||||||
| A050M6138 | 2 | 2 | 2 | Lamp - Door Edge (Red) | |||||||
| 050M0115 | 4 | 4 | 4 | Cover - Door Courtesy Lamp | |||||||
| 310 | 8 | 8 | 8 | Screw, Lamps to Door Edge | |||||||
| A03W1606 | 8 | 8 | 8 | Washer, Lamps to Door Edge | |||||||
| 050M6086 | 2 | 2 | 2 | Lamp - Bonnet Illumination | |||||||
| 310 | 4 | 4 | 4 | Screw, Lamps to Bonnet | |||||||
| A03W1606 | 4 | 4 | 4 | Washer, Lamps to Bonnet | |||||||
| 14 | 050M6102 | 1 | 1 | 1 | Switch - Bonnet Illumination | ||||||
| 050B1558 | 1 | 1 | 1 | Bracket - Actuating Switch | |||||||
| 050B1561 | 1 | 1 | 1 | Mounting Bracket - Glove Box Lamp Switch | |||||||
| KSTS0608 | 1 | 1 | 1 | Screw, Bracket to Glove Box | |||||||
| 036B6001 | 1 | 1 | 1 | Nut, Bracket to Glove Box | |||||||
| 12 | A036M6317 | 3 | 3 | 3 | Bulb - Boot, Bonnet and Glove Box Lamps | ||||||
| 13 | A050M6176 | 2 | 2 | 2 | Switch - Boot, Glove Box | ||||||
| 15 | 050M6006 | 2 | 2 | 2 | Switch - Doors | ||||||
| 16 | 050M6025 | 2 | 2 | Interior Lamp Lens, Rear Quarter Panel | |||||||
| 17 | 050M6026 | 2 | 2 | Interior Lamp Lens, Rear Quarter Panel | |||||||
| 050M6027 | 1 | 1 | Interior Lamp - Header Rail | ||||||||
| A036M6317 | 3 | 3 | Bulb | ||||||||
| 18 | 050M6024 | 2 | Lamp - Rear Number Plate | ||||||||
| DSTS0808 | 4 | Screw | |||||||||
| 427A | 4 | Nut, Lamp Mounting | |||||||||
| 19 | A036M6330 (989) | 1 | Bulb |
