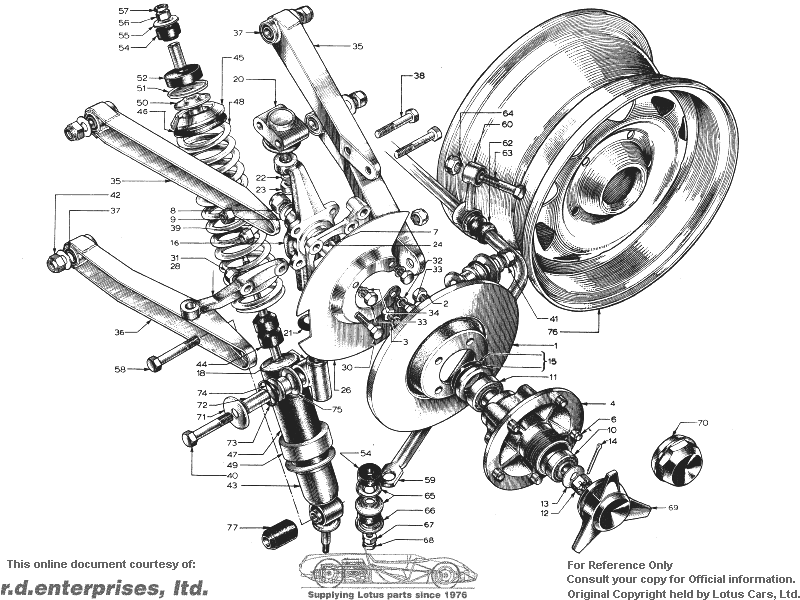

LOTUS ELAN+2 PARTS MANUAL

Section CA -- Front Suspension


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 A050J60982               Disc - Front
2 036J60098               Bolt, Disc to Stub Axle
3 036J60108               Washer, Disc to Stub Axle
4 050C00411               Hub - Front LH
 050C00421               Hub - Front RH
6 050G001110               Drive Peg
7 036C60402               Stub Axle
8 036C60332               Nut, Stub Axle to Vertical Link
9 036C60342               Washer, Stub Axle to Vertical Link
10 036C60412               Bearing - Outer - Front Hub
11 036C60422               Bearing - Inner - Front Hub
12 036C60102               Slotted Nut, Hub to Stub Axle
13 050C60002               'D' Washer, Hub to Stub Axle
14 050C60012               Split Pin, Hub to Stub Axle
15 050C6002                Seal Assembly - Inner
16 036C60431               Vertical Link LH
 036C60441               Vertical Link RH
 036C60351               Grease Plug - Vertical Link
18 036C60261               Lower Trunnion Assembly LH
 036C60251               Lower Trunnion Assembly RH
20 036C60072               Upper Ball Joint
21 036C60472               Dust Seal - Lower Trunnion
22 050C60042               Nut, Ball Joint Assembly to Vertical Link
23 050C60052               Washer, Ball Joint Assembly to Vertical Link
24 050C60061               Caliper Mounting Plate LH
 050C60071               Caliper Mounting Plate RH
26 050C60081               Dust Cover LH
 050C60091               Dust Cover RH
 036H60001               Steering Arm LH
28 050C60011               Steering Arm RH
30 050C60122               Bolt, Dust Cover, Caliper Plate and Steering Arm to Vertical Link
31 050C60132               Nut, Dust Cover, Caliper Plate and Steering Arm to Vertical Link
 050C61042               Spacer, Dust Cover, Caliper Plate and Steering Arm to Vertical Link
 050C60152               Bolt, Dust Cover, Caliper Plate and Steering Arm to Vertical Link
32 050C60162               Washer, Dust Cover, Caliper Plate and Steering Arm to Vertical Link
33 050C60174               Screw, Dust Cover and Caliper Plate to Vertical Link
34 050C60184               Washer, Dust Cover and Caliper Plate to Vertical Link
 050C60192               Seal - Caliper Plate to Vertical Link
35 050C00014               Wishbone Half - Upper
36 036C60048               Bush
37 050C00024               Wishbone Half - Lower
38 XUFB05364               Bolt, Upper Wishbone to Upper Ball Joint
39 YUFN050F4               Nut, Upper Wishbone to Upper Ball Joint
40 XUFB07402               Bolt, Lower Wishbone to Lower Trunnion
41 YUFN070F2               Nut, Lower Wishbone to Lower Trunnion
42 YUFN080F8               Nut, Wishbone to Chassis
 128F                Washer, Wishbone to Chassis
 050C60202               Damper (replaced by A050C6034)
43 A050C60342               Damper From ?
77 A050C60422               Bush Assembly - Damper, Lower Bulletin:
Parts 1971/3 & 03
44 050C60212               Bump Rubber
45 050C60222               Spring Abutment, top
46 050C60234               Rubber Ring - Spring Abutment
47 050C60242               Rubber Sleeve
 050C0010-               Spring (replaced by 050C0010A in pairs) Upto Chassis No. 2120
48 050C0010A2               Spring From Chassis No. 2121
 050C0710-               Damper and Spring Assembly (replaced by A050C0710 in pairs) Upto Chassis No. 2120
 050C0710A2               Damper and Spring Assembly (replaced by A050C0710) (Use up old Stocks) From Chassis No. 2121 to Chassis No. ?
 A050C07102               Damper and Spring Assembly
49 050C60252               Distance Ring
50 050C60262               Seat - Top Spring Abutment
 050C60272               Washer, Top Mounting Front Suspension Unit Upto Sept. 1970
 050C60282               Mounting Rubber, Top Mounting Front Suspension Unit Upto Sept. 1970
 050C60292               Washer, Top Mounting Front Suspension Unit Upto Sept. 1970
 050C60302               Mounting Rubber(replaced by 036C6036), Top Mounting Front Suspension Unit Upto Sept. 1970
 036C60362               Mounting Rubber, Top Mounting Front Suspension Unit Upto Sept. 1970
 036C60372               Washer, Top Mounting Front Suspension Unit Upto Sept. 1970
 036C60382               Nut, Top Mounting Front Suspension Unit Upto Sept. 1970
 036C60392               Locknut, Top Mounting Front Suspension Unit Upto Sept. 1970
51 A050C60412               Washer - Lower, Top Mounting Front Suspension Unit From Sept. 1970
52 A050C60402               Mounting Rubber - Lower, Top Mounting Front Suspension Unit From Sept. 1970
54 A050C60382               Mounting Rubber - Upper, Top Mounting Front Suspension Unit From Sept. 1970
55 A050C60372               Washer - Upper, Top Mounting Front Suspension Unit From Sept. 1970
56 A050C60362               Nut, Top Mounting Front Suspension Unit From Sept. 1970
57 A050C60352               Locknut, Top Mounting Front Suspension Unit From Sept. 1970
58 XUFB08402               Bolt, Damper Unit to Lower Wishbone
 YUFN080F2               Nut, Damper Unit to Lower Wishbone
 A08W20062               Washer, Damper Unit to Lower Wishbone
59 050B0003B1               Anti-Roll Bar
60 026B00051               Link - Anti-Roll Bar LH
 026B00061               Link - Anti-Roll Bar RH
62 A050C0109
(W051A)		2               Rubber Bush - Anti Roll Bar to Link
63 XUFB06282               Bolt, Anti-Roll Bar to Chassis
64 YUFN060F2               Nut, Anti-Roll Bar to Chassis
65 036C60004               Washer - Damper to Anti-Roll Bar
66 036C60012               Washer - Damper to Anti-Roll Bar
67 036C60382               Nut, Damper to Anti-Roll Bar
68 036C60392               Locknut, Damper to Anti-Roll Bar
 036G00062           +   Nut - RH Wheel Retaining
69 036G00072           +   Nut - LH Wheel Retaining
 C036G60062             + Nut - RH Wheel Retaining
70 C036C00072             + Nut - LH Wheel Retaining
71 036C60324               Washer, Lower Trunnion
72 036C60312               Sleeve, Lower Trunnion
73 036C60304               Seal, Lower Trunnion
74 050B60024               Bush, Lower Trunnion
75 036C60294               Washer, Lower Trunnion
76 050G0704  5 5           Road Wheel
 A050G0704      5 5 5     Road Wheel - Black and Chrome
                 For tyre recommendations see Workshop Manual Elan +2 Part No. 50T327 Techincal Data Page 17.
